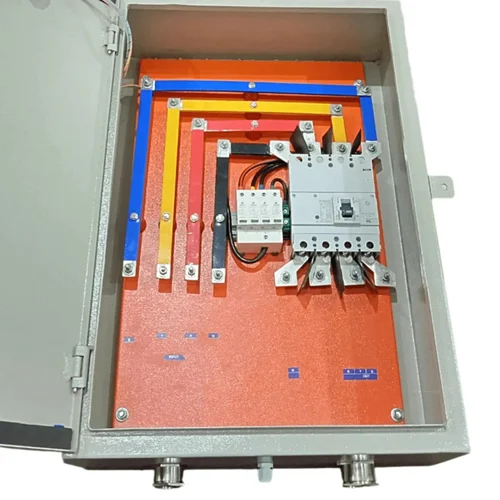

ACDB 100A (25KW - 41KW) METAL ENCLOSURE+BUSBAR WITH RYB INDICATORS
L&K MCCB / HAVELLS SPD
₹13975.00
📌 Product: ACDB 100A (25KW – 41KW) Metal Enclosure + Busbar with RYB Indicators
🔹 Product Description
The ACDB 100A (25KW – 41KW) is a high-quality Alternating Current Distribution Box designed for reliable power distribution and protection in industrial, commercial, and solar power applications. Housed in a robust metal enclosure, this distribution box features a heavy-duty busbar system and bright RYB (Red-Yellow-Blue) status indicators for clear phase monitoring.
Built for durability and safety, the ACDB ensures efficient power distribution from the incoming source to outgoing loads, making it ideal for motor control centers, control panels, solar inverters, generators, and distribution boards.
📌 Key Features
✔️ Rated Current: 100A
✔️ Power Range Support: 25KW – 41KW
✔️ Rigid Metal Enclosure – Long-lasting protection against dust and mechanical impact
✔️ Busbar System – High conductivity copper/AL busbars for stable current distribution
✔️ RYB Phase Indicators – Visual monitoring of three phases (Red, Yellow, Blue)
✔️ Easy Installation – Wall mountable with pre-drilled holes
✔️ Safe & Compliant – Meets industrial electrical safety standards
✔️ Compact Design – Space-efficient layout with organized wiring channels
📌 Technical Specifications
Parameter | Specification |
|---|---|
Model | ACDB 100A (25KW – 41KW) |
Rated Current | 100 Amps |
Power Handling Range | 25KW to 41KW |
Input Voltage | 400V AC, 3-Phase |
Frequency | 50 / 60 Hz |
Enclosure Material | Sheet Steel (Powder Coated) |
Protection Degree | IP54 / IP65 (Optional) |
Busbar Type | High Conductivity Copper / Aluminium |
Number of Phases | 3 (R, Y, B) + Neutral |
Phase Indicators | RYB LED Indicators (Red, Yellow, Blue) |
Mounting Type | Wall / Panel Mounting |
Terminal Type | Bolt-on / Screw Terminals |
Cable Entry | Bottom & Top Cable Entry Provision |
Earthing Provision | Yes |
Operating Temperature | –10°C to +60°C |
Compliance | IS / IEC / CE (Depending on model) |
Accessories Included | Mounting bolts, Busbar covers, Terminal connectors |
