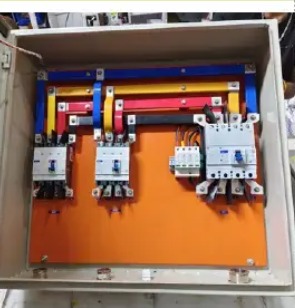

ACDB 2 in 1 Out (220KW) 2 MCCB x 250A Input &500A MCCB Output METAL ENCLOSURE+BUSBAR WITH RYB INDICATORS
L&K MCCB / HAVELLS SPD
₹89440.00
🔷 Product Description
ACDB 2 in 1 Out (220 kW) ek heavy-duty AC Distribution Board hai jo high-capacity solar power plants / industrial electrical systems ke liye design kiya gaya hai.
Is ACDB me 2 independent AC inputs aur 1 high-current AC output diya gaya hai, jo multiple inverters se aane wali power ko safely combine & distribute karta hai.
Isme robust metal enclosure, high-quality copper busbar, aur RYB phase indicators diye gaye hain, jo system monitoring, safety aur long-term reliability ko ensure karte hain.
Ye ACDB over-current, short-circuit aur load imbalance se system ko protect karta hai, isliye ye commercial & utility-scale solar projects ke liye ideal solution hai.
🔧 Technical Specifications
Parameter | Specification |
|---|---|
Product Type | AC Distribution Board (ACDB) |
Capacity | 220 kW |
Input Configuration | 2 Incomers |
Input Protection | 2 × MCCB – 250A each |
Output Configuration | 1 Outgoing |
Output Protection | 500A MCCB |
System Voltage | 415V AC |
Phase | 3 Phase, 4 Wire |
Frequency | 50 Hz |
Busbar Type | High-Conductivity Copper Busbar |
Busbar Rating | As per load (suitable for 500A) |
Enclosure Material | Metal Enclosure (Powder Coated) |
Protection Class | IP-54 (or as required) |
Indication | RYB Phase Indicator Lamps |
Mounting Type | Floor / Wall Mount |
Cooling | Natural Air Ventilation |
Application | Solar Power Plants, Industrial Power Distribution |
Standards | IEC / IS Compliant |
✅ Key Features
✔️ 2-in-1 Out Configuration
✔️ Heavy-duty 250A MCCB Incomers
✔️ 500A MCCB Outgoing Protection
✔️ High-quality Copper Busbar System
✔️ Durable Powder-Coated Metal Enclosure
✔️ RYB Phase Indication for easy monitoring
✔️ High safety & low maintenance
✔️ Suitable for 220 kW solar systems
🏭 Applications
Commercial Solar Power Plants
Utility-Scale Solar Projects
Industrial Power Distribution
Large Rooftop Solar Installations
