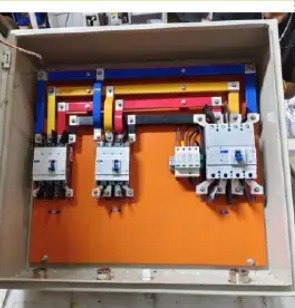

ACDB 2 in 1 Out (71.7KW) (100A MCCB+63A MCB) METAL ENCLOSURE+BUSBAR WITH RYB INDICATORS

Product Description

The ACDB 2-in-1 OUT (71.7kW) is a robust and reliable Alternating Current Distribution Board designed for industrial and commercial power systems. Built with high-quality metal enclosure and equipped with premium protective devices, this ACDB ensures safe, efficient, and organized power distribution for incoming and outgoing load circuits.

This model integrates a 100A MCCB (Molded Case Circuit Breaker) for main protection and a 63A MCB (Miniature Circuit Breaker) for outgoing feeder protection, making it ideal for critical applications such as solar power systems, motor loads, HVAC setups, and general electrical distribution. The RYB (Red, Yellow, Blue) indicator lights provide at-a-glance phase status, enabling quick visual inspection of power health and load balance.

Constructed with a durable metal enclosure and designed for ease of installation, this ACDB is suitable for wall-mounting in electrical rooms, rooftop solar installations, factories, workshops, and commercial facilities. Precision engineered for safety, longevity, and compliance with electrical standards, this distribution board simplifies electrical management while enhancing operational reliability.

Key Features

• Two-in-One Compact Design: Combines main protection and outgoing feeder protection in a single unit.

• High-Capacity Protection: 100A MCCB for robust main circuit safeguarding.

• Outgoing Feeder Protection: 63A MCB for controlled distribution to downstream loads.

• Metal Enclosure: Strong and durable material for long service life and safety.

• RYB Phase Indicators: Red, Yellow, Blue lights for real-time phase monitoring.

• Easy Installation: Wall-mountable with clear terminal access and labeling.

• Safe & Compliant: Designed to meet industrial electrical safety requirements.

Technical Specifications
