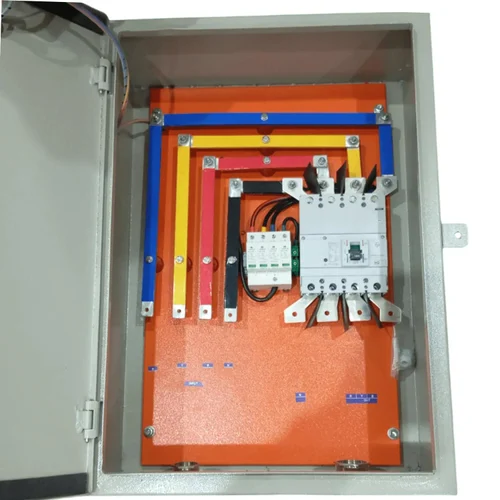

ACDB 320A (111KW - 140KW) METAL ENCLOSURE+BUSBAR WITH RYB INDICATORS
L&K MCCB / HAVELLS SPD
₹41080.00
🔌 ACDB 320A (111KW – 140KW)
Metal Enclosure + Busbar with RYB Indicators
📝 Product Description
The ACDB 320A (111KW – 140KW) is a high-performance AC Distribution Box designed for large-scale solar power plants, commercial rooftops, and industrial electrical systems. It efficiently collects and distributes AC power from multiple inverters to the main LT panel while ensuring maximum safety, reliability, and operational visibility.
Built with a heavy-duty metal enclosure and copper/aluminium busbar, this ACDB provides excellent mechanical strength, corrosion resistance, and long service life. Integrated RYB phase indicator lamps offer real-time phase status monitoring, helping technicians quickly identify power availability and phase imbalance.
This ACDB is engineered to handle high current loads up to 320A, making it ideal for systems ranging from 111KW to 140KW.
⚙️ Technical Specifications
Parameter | Specification |
|---|---|
Product Type | AC Distribution Box (ACDB) |
Rated Current | 320 Ampere |
Power Capacity | 111KW – 140KW |
Application | Solar Power Plants, Commercial & Industrial Systems |
Enclosure Type | Metal Enclosure (Powder Coated) |
Degree of Protection | IP-54 / IP-55 (optional) |
Busbar Type | Copper / Aluminium |
Busbar Configuration | RYB (3 Phase + Neutral + Earth) |
Indicator Lamps | RYB Phase Indicator Lamps |
Incomer | MCCB / ACB (as per requirement) |
Outgoing | MCCB / MCB (as per system design) |
Voltage Rating | 415V AC |
Frequency | 50 Hz |
Mounting Type | Wall Mount / Floor Mount |
Cable Entry | Top / Bottom |
Standard Compliance | IEC / IS Standards |
Operating Temperature | -10°C to +55°C |
🌞 Key Features
✔️ Heavy-duty metal enclosure for outdoor & indoor use
✔️ High-current 320A rating for large solar installations
✔️ RYB indicators for quick phase monitoring
✔️ Robust busbar system for low power loss
✔️ Safe and organized power distribution
✔️ Easy maintenance and long service life
