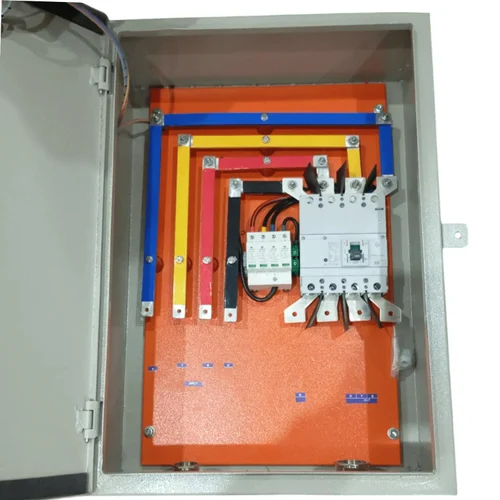

ACDB 500A (177KW - 220KW) METAL ENCLOSURE+BUSBAR WITH RYB INDICATORS

ACDB 500A (177 kW – 220 kW) — Metal Enclosure with Busbar & RYB Indicators

The ACDB 500A is a high-performance Alternating Current Distribution Board designed to reliably distribute incoming electrical power in industrial, commercial, and large-scale residential applications. Engineered for durability and safety, it comes in a rugged powder-coated metal enclosure with robust busbars and clear R-Y-B phase indication lights for real-time status monitoring.

This ACDB is ideal for LT (Low Tension) power distribution for motors, generators, DG sets, solar inverters, and main electrical panels requiring upto 500 Amps.

📌 Key Features

✔️ Rated Current: 500 A
✔️ Power Range: Suitable for loads from 177 kW to 220 kW
✔️ Metal Enclosure:

• Heavy-gauge MS (Mild Steel) or CRCA sheet

• Powder-coated finish for rust resistance
  ✔️ Busbar System:

• Robust copper/aluminium busbars

• Ensures low impedance and uniform current distribution
  ✔️ RYB Indicators:

• Red, Yellow & Blue phase indication lamps

• Visual phase presence monitoring
  ✔️ Safety & Protection:

• Earth continuity plate

• Lockable door arrangement
  ✔️ Cable Entry/Exit Points:

• Ample spacing for easy termination
  ✔️ IP Rating: Typically IP31/IP42 (or higher as per requirement)
  ✔️ Easy Maintenance & Serviceability

📘 Technical Specifications
