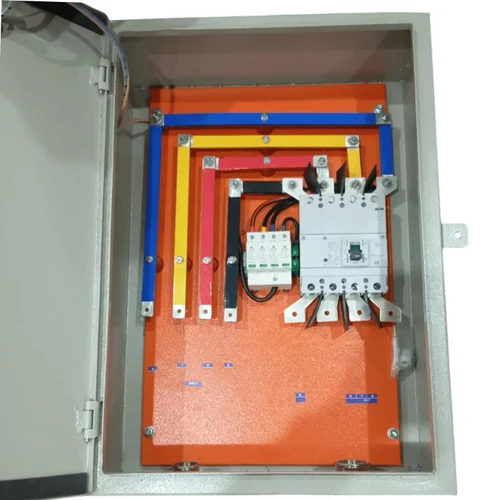

ACDB 600A (221KW - 264KW) METAL ENCLOSURE+BUSBAR WITH RYB INDICATORS
L&K MCCB / HAVELLS SPD
₹56420.00
🔌 ACDB 600A (221 kW – 264 kW) – Metal Enclosure + Busbar with RYB Indicators
Product Description
The ACDB 600A (221 kW – 264 kW) is a high-performance Alternating Current Distribution Board designed for industrial and commercial electrical power systems. Built for reliability and safety, this robust distribution board features a rugged metal enclosure, heavy-duty copper busbars, and RYB phase indicators for convenient visual status monitoring.
Ideal for use in power distribution panels, switchgear systems, and motor control centers, the ACDB ensures clean, organized & protected distribution of three-phase electrical power. Its engineered construction minimizes electrical loss, provides superior fault protection, and enhances the longevity of connected equipment.
Whether installed in factories, data centers, commercial buildings, or renewable energy systems, this ACDB is engineered to deliver efficient performance, easy maintenance, and safe operation.
Key Features
✔ Rated Current: 600A three-phase distribution
✔ Power Range: Suitable for 221 kW – 264 kW load capacity
✔ Metal Enclosure: Powder-coated SPCC sheet for strength, corrosion resistance & long service life
✔ Busbar System: High-conductivity copper busbars for minimal power loss
✔ RYB Phase Indicators: Red, Yellow, Blue LED indicators for real-time phase presence monitoring
✔ Safety & Standards: Designed in accordance with IEC/BS/IS electrical safety norms
✔ Cable Entry & Exit: Removable gland plates for easy cable management
✔ Lockable Door: Enhanced protection against unauthorized access
✔ Ease of Maintenance: Modular design reduces downtime
✔ Thermal Stability: Suitable for continuous operation under full load
Technical Specifications
Parameter | Specification |
|---|---|
Model | ACDB – 600A (221 kW – 264 kW) |
Rated Operational Current (Ie) | 600 A |
Rated Power Range | 221 kW – 264 kW (approx. based on 415 VAC three-phase) |
Phases | Three-Phase |
Enclosure Material | Powder-coated SPCC / CRCA Metal |
Finish | Textured / Anti-corrosive |
Busbar Material | Pure Copper (Tin-plated optional) |
Busbar Size | As per design (e.g., 25 × 6 mm) |
Phase Indicators | R (Red), Y (Yellow), B (Blue) LED |
Protection Degree (IP Rating) | IP 42 / IP 54 / IP 65 (select based on environment) |
Mounting | Floor / Wall Mounting Options |
Incoming Provision | 1 × 600A Incomer MCCB / Isolator |
Outgoing Provision | Distribution points for branch feeders |
Operating Voltage | 380 – 415 VAC, 50/60 Hz |
Ambient Temp. Range | –10°C to +55°C |
Standards Compliance | IEC 61439 / IS 8623 (or equivalent) |
Earthing Provision | Integrated Earthing Terminal |
Door | Lockable with Handle & Gasket Seal |
Accessories | Neutral link, Earth link (factory fitted) |
