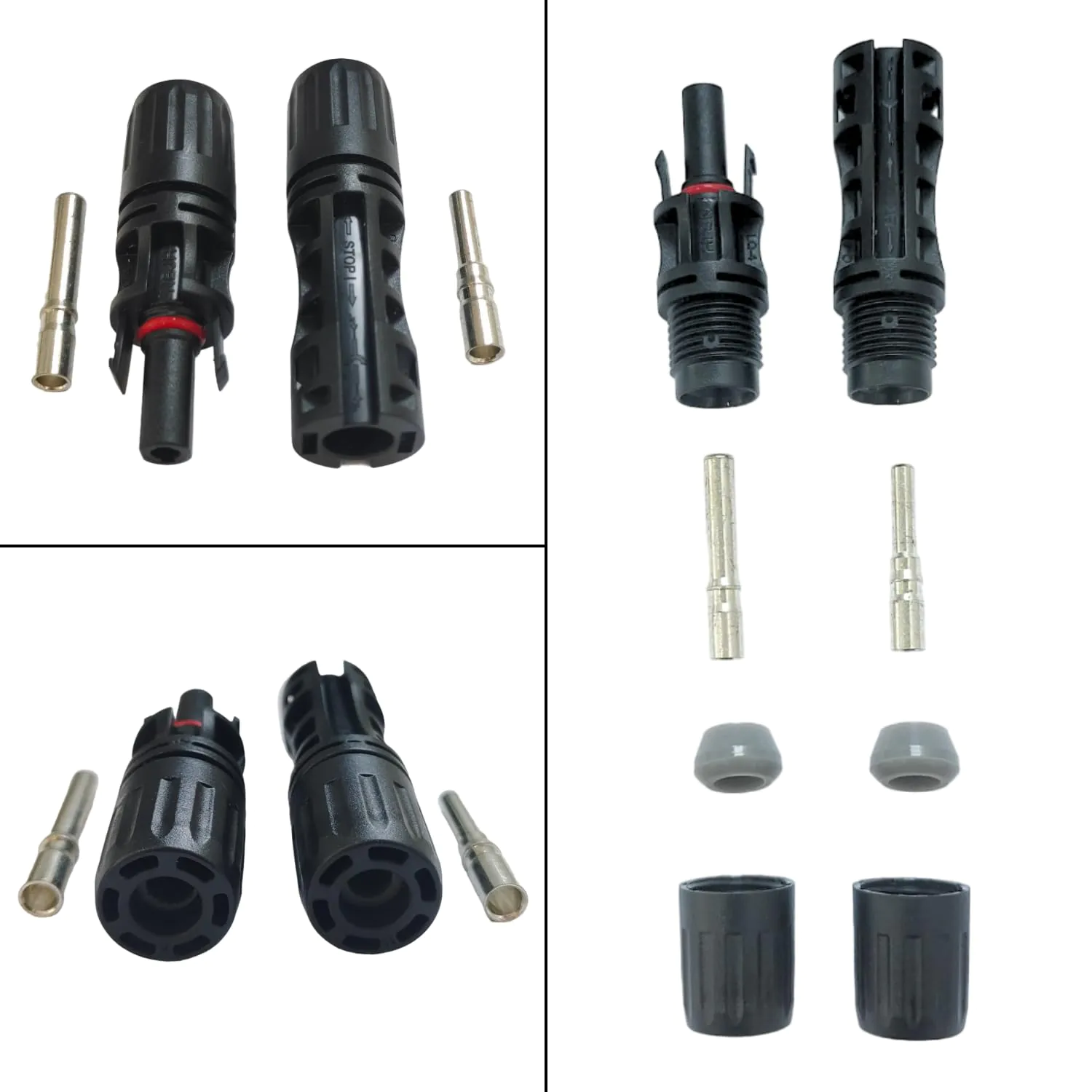

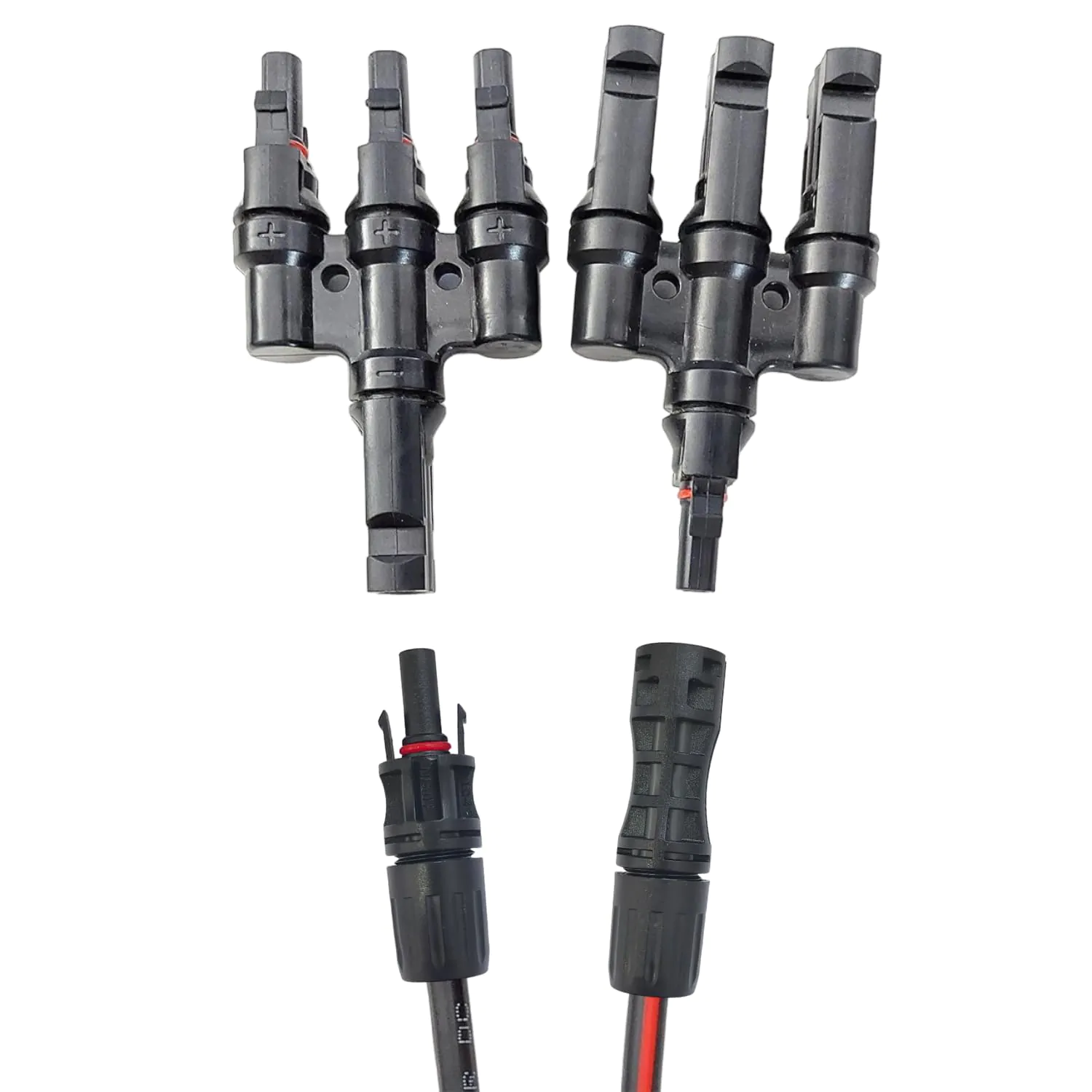

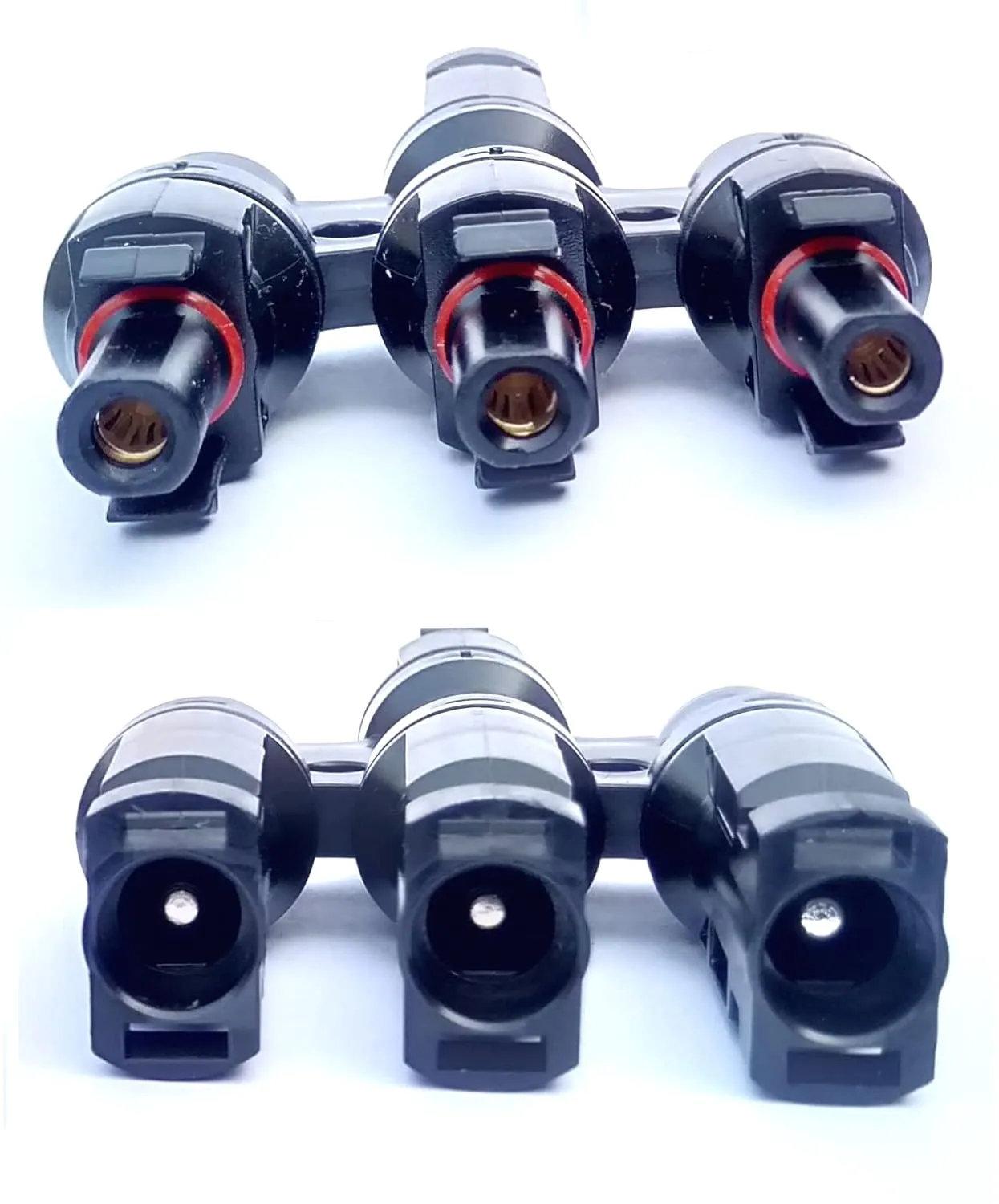

Agrim Solar 3 in 1 T3 Connector 1500V/50A with 10 sq mm MC4 Solar Connector (Output Support – 10 SQ. MM Wire ONLY)
Agrim Solar 3 in 1 T3 Connector 1500V/50A with 10 sq mm MC4 Solar Connector (Output Support – 10 SQ. MM Wire ONLY)
₹660.00
Particular | Description |
Product Name | T3 with 10sq. mm Connector |
Brand | |
Max. Rated Voltage | 1500V DC |
Rated Current | 50 Amps |
Contact Material | Copper with Tin Plated |
Insulation Material | PPO + PA |
Tested Voltage | 6KV (50Hz, 1Min) |
Contact Resistance | ≤3mΩ |
Protection Degree | IP67 (Waterproof) |
Flame Class | UL94-V0 |
Suitable For | Parallel Connection of 3 Solar Panels |
Temperature Range | -40 ℃ ~ +85 ℃ |
Key Features:
【Heavy Duty MC4 Connectors】 Agrim MC4 solar connector’s conductor pins are made of Copper with Tin Plated outer coating. These branch connectors are made of high quality PPO + PA material.
【UV Resistance and Long Life】 With excellent aging resistance and UV endurance, it can be used in harsh environments. Estimated Life 25 Years.
【Waterproof and Anti-flame】 Once you complete the installation, your joint is waterproof. These solar panel cable connectors with resistance to extra high & low temperatures and are fireproof.
【Suitable For】 Connect any size of 3 solar panels in parallel. Agrim Solar T3 MC4 connectors are perfect to carry up to 1500 Volt and 50A DC power.
【Please Note】 MC4 Wire Connectors provided with branch connectors, support “ONLY 10 SQ. MM WIRE” on output. It does not support any other size wires.
