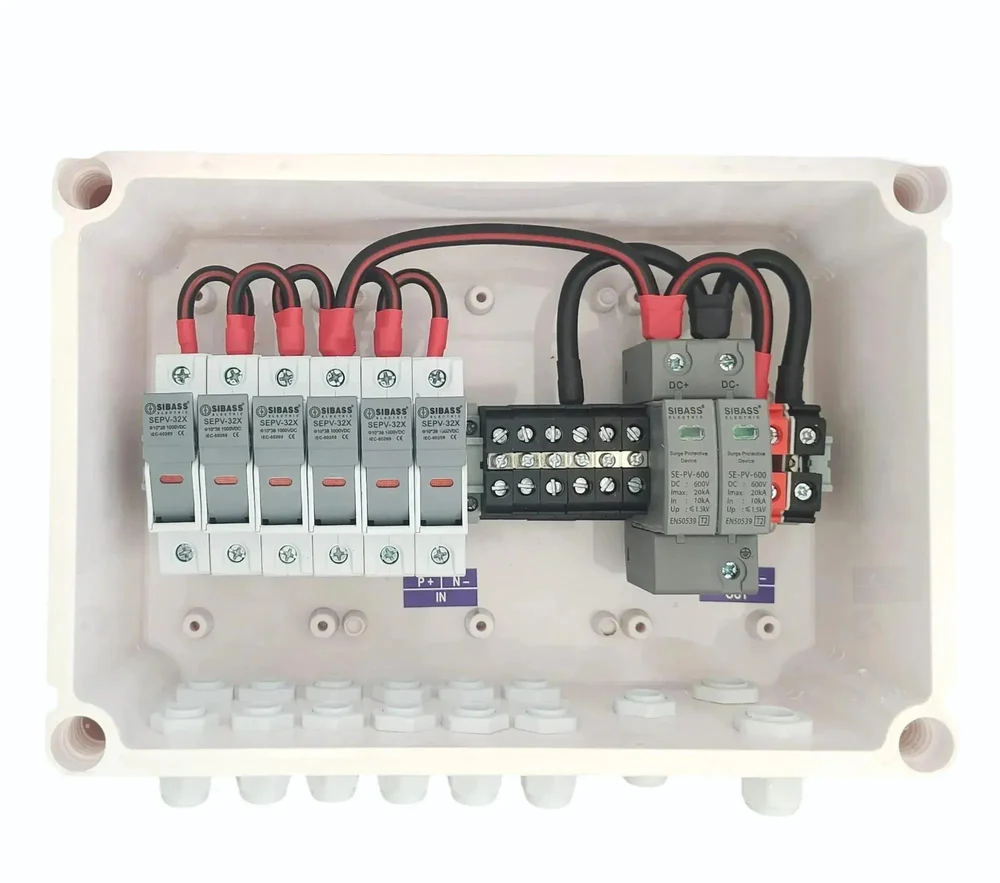

AJB 2 IN-1OUT 1000V (2 Series x ≤20 Panels)
SIBASS FUSE / SIBASS SPD
₹1508.00
Product Description
The AJB 2-IN-1OUT 1000V (No MCB) is a high-performance solar array junction box engineered for safe and efficient interconnection of photovoltaic modules. Suitable for residential and commercial solar systems, this junction box supports two input strings (series connection) with up to 20 solar panels per string, operating at a maximum system voltage of 1000 V DC.
This version is designed without MCB (Miniature Circuit Breaker) — ideal for setups where external overcurrent protection is already in place or when installation flexibility is needed. Built with premium materials and IP-rated protection, it ensures durability in harsh outdoor environments, reduces wiring complexity, and enhances system reliability.
📌 Key Features
✔️ Designed for 2 input strings × up to 20 panels
✔️ 1000 V DC rated high-voltage capacity
✔️ No MCB – minimal configuration for expert setups
✔️ Safe and efficient PV string termination
✔️ Compact and rugged weather-proof enclosure
✔️ Easy installation and maintenance support
✔️ Superior electrical insulation and safety standards
⚙️ Technical Specifications
Specification | Details |
|---|---|
Model | AJB 2-IN-1OUT 1000V (No MCB) |
System Voltage | 1000 V DC |
Input Strings | 2 Strings (PV Arrays) |
Max Panels per String | ≤ 20 Panels (Series Connected) |
Output | 1 Output to Inverter |
Overcurrent Protection | No MCB included |
Enclosure Rating | IP65 / Weather-proof |
Connector Type | MC4 Compatible / Solar PV Standard |
Cable Entry | Threaded Entries with Sealing Glands |
Terminal Capacity | Suitable for 4–10 mm² Solar Cables |
Operating Temp. Range | -20 °C to +85 °C |
Mounting | Wall/Structure Mountable Enclosure |
Standards Compliance | IEC / IS / Solar Industry Standards |
Material | UV Stabilized & Flame-Retardant Plastic |
Color | Black / Grey (industry standard) |
Dimensions | (L × W × H) – as per model |
📌 Applications
➡️ Residential solar rooftops
➡️ Commercial solar installations
➡️ Industrial PV systems
➡️ Grid-tied & Off-grid solar arrays
➡️ Solar power projects requiring centralized junction management
