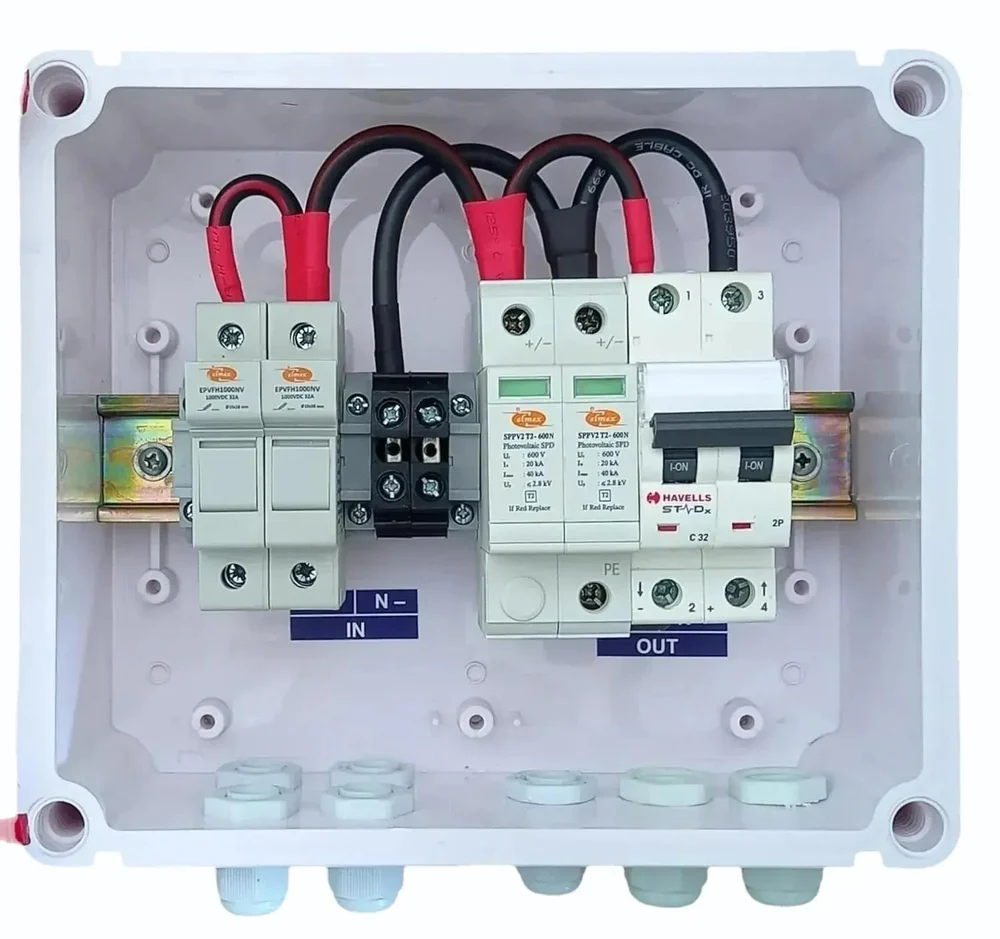

AJB 2 IN-1OUT 600V (2 Series x ≤12 Panels)
ELMEX FUSE / ELMEX SPD / HAVELLS MCB
₹2080.00
📝 Product Description
AJB 2 IN–1 OUT 600V is a high-quality Array Junction Box designed for efficient and safe combining of two solar panel strings into a single output. It is suitable for small to medium solar PV systems, ensuring reliable power flow while providing complete protection against overload, short circuit, and surge voltage.
This AJB is equipped with DC Fuse, DC MCB, and Surge Protection Device (SPD) to safeguard solar arrays from electrical faults, lightning surges, and reverse current. Its robust weather-resistant enclosure makes it ideal for outdoor installations, including rooftop and ground-mounted solar projects.
⚙️ Technical Specifications
Parameter | Specification |
|---|---|
Product Type | Array Junction Box (AJB) |
Input | 2 String Input |
Output | 1 String Output |
System Voltage | Up to 600V DC |
Panel Configuration | 2 Series × ≤12 Panels |
Fuse Type | DC Fuse (gPV) |
Fuse Rating | As per system design (10A / 15A / 20A) |
MCB Type | DC MCB |
MCB Rating | 16A / 20A / 25A (Optional) |
SPD Type | DC SPD – Type 2 |
SPD Voltage | 600V DC |
Protection | Overcurrent, Short Circuit, Surge Protection |
Enclosure Material | UV-resistant ABS / Polycarbonate |
Degree of Protection | IP65 |
Operating Temperature | -20°C to +60°C |
Mounting Type | Wall / Pole Mount |
Cable Entry | PG Glands |
Application | Rooftop & Small Solar Power Plants |
✅ Key Features
✔️ Compact & durable design
✔️ Pre-wired for easy installation
✔️ High safety with Fuse + MCB + SPD
✔️ Suitable for outdoor solar applications
✔️ Low maintenance & long service life
🏭 Applications
Residential Solar Rooftop Systems
Small Commercial Solar Plants
On-grid & Off-grid Solar Installations
