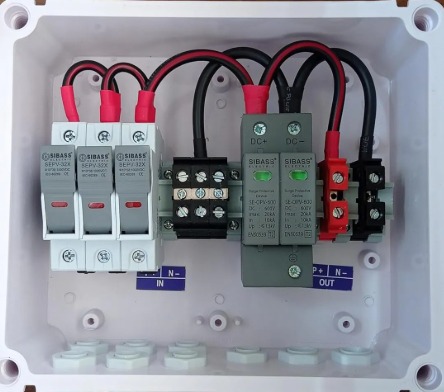

AJB 3 IN-1OUT 600V (3 Series x ≤12 Panels)
ELMEX FUSE / ELMEX SPD
₹1950.00
Product Description
The AJB 3-in-1 OUT 600V junction box is a high-quality interconnection solution designed for efficient and safe power routing in solar photovoltaic (PV) systems. Engineered to handle up to 3 series strings of solar modules (maximum 12 panels), this junction box efficiently combines multiple PV strings into a single output for faster and more reliable DC distribution.
Built with robust materials and precision engineering, this junction box ensures enhanced electrical performance and superior weather resistance. The NO MCB (No Miniature Circuit Breaker) configuration offers a cost-effective solution for systems where external protection devices are used, or specific site requirements dictate independent safety components.
Ideal For: Solar rooftop installations, off-grid systems, commercial solar arrays, and industrial PV projects.
🔧 Key Features
Versatile Configuration: Suitable for 3 strings in parallel, supporting up to 12 solar panels (4 panels per string).
Rated Voltage: 600V DC, optimized for standard solar arrays and compliant with common PV system designs.
Robust Build: Made with weather-proof housing and high-quality terminals to withstand harsh environmental conditions.
Compact & Lightweight: Easy to mount and install on rooftops and outdoor solar structures.
Enhanced Safety: Designed with protections against corrosion and high operating temperatures.
User-Friendly: Clear string labeling and accessible terminal points help reduce installation time.
📋 Specifications
Specification | Details |
|---|---|
Model | AJB 3-in-1 OUT 600V |
Configuration | 3 strings × up to 12 panels |
Maximum Rated Voltage | 600V DC |
Maximum Current | Typically 25–30A* (check rating) |
Cable Entry | PG/Metric Cable Glands |
Connector Type | Screw/MC Terminal Blocks |
Housing Material | ABS / PC / Weather-proof Plastic |
Protection Rating | IP65 / Outdoor Rated |
Mounting | Wall / Structure Mountable |
Operating Temperature | -25°C to +70°C (typical) |
Color | Black / Grey (varies by brand) |
MCB | Not Included (NO MCB) |
Certifications | CE / RoHS / UL (as applicable) |
*The exact current rating may vary depending on the manufacturer or specific model variant — always verify with datasheet before final installation.
💡 Benefits
✔ Cost-effective solution for 3-string PV interconnection
✔ Simplifies wiring layout and reduces installation time
✔ Durable for outdoor solar environments
✔ Ideal for small to medium rooftop and ground-mounted systems
🔧 Typical Applications
✅ Residential solar power systems
✅ Small commercial solar installations
✅ Off-grid & hybrid PV setups
✅ Solar farms & industrial arrays (as part of larger DC combiner schemes)
