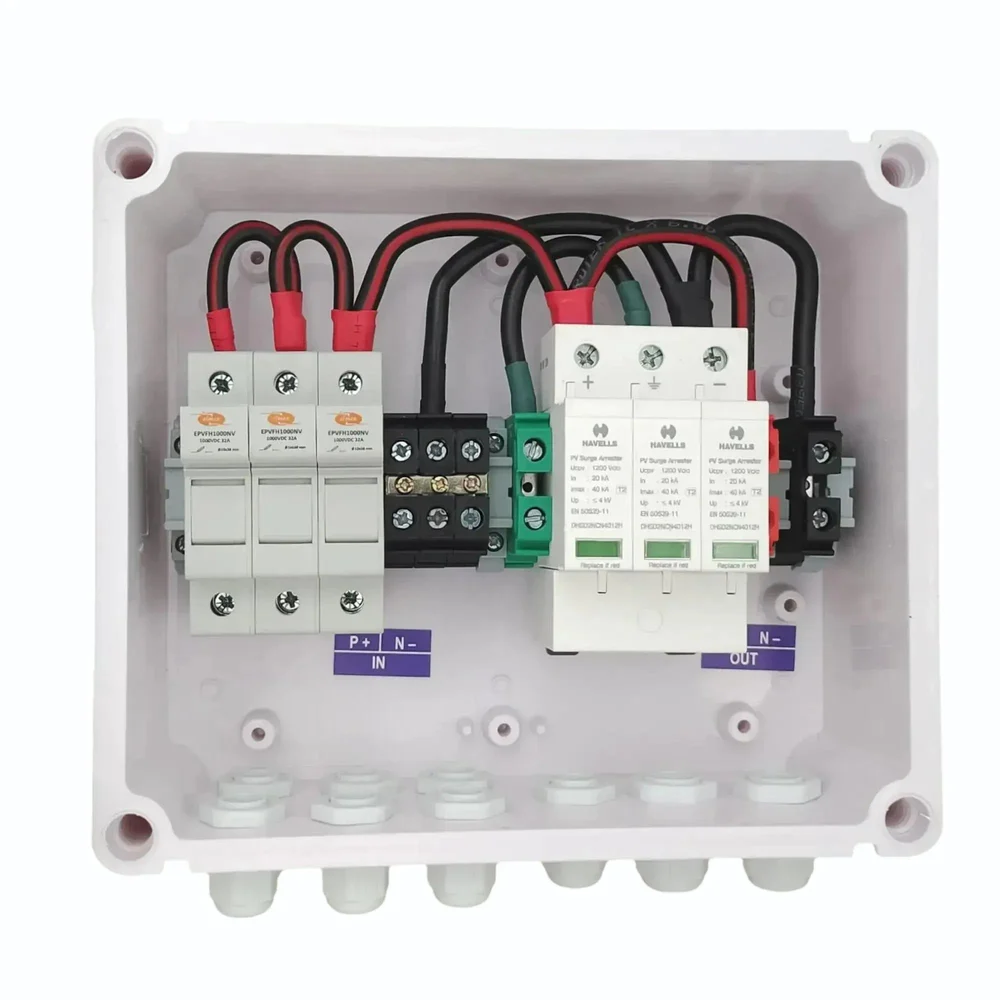

AJB 4 IN-1OUT 1000V (4 Series x ≤20 Panels)
HAVELLS FUSE / HAVELLS SPD
₹3120.00
Product Description:
The AJB 4 IN-1 OUT 1000V is a high-quality solar combiner junction box designed for safely connecting and managing multiple solar PV strings in a solar power system. This robust 4-in-1 combiner box supports up to 4 series of solar panels, with a maximum of 20 panels per series, and is rated for 1000V DC operation.
Ideal for residential, commercial, and industrial solar installations, this combiner box allows for efficient string merging, streamlined wiring, and enhanced system safety. Its compact, durable, and weather-resistant design ensures long-lasting performance in outdoor environments.
Note: This model comes without MCBs (Miniature Circuit Breakers), allowing flexibility to choose MCBs as per project requirements.
Specifications:
Feature | Details |
|---|---|
Model | AJB 4 IN-1 OUT 1000V |
Input | 4 Series x ≤20 Panels per series |
Output | 1 Output |
Rated Voltage | 1000V DC |
Rated Current | Typically 32A–40A (depending on MCB rating) |
Protection | Optional MCBs (Not included) |
Enclosure Material | High-quality ABS / IP65 weatherproof |
Mounting | Wall-mounted / Outdoor suitable |
Temperature Range | -25°C to +60°C |
Certification | CE / ISO (if applicable) |
Application | Solar PV string combining for rooftop & ground-mounted systems |
Key Features:
Durable, UV-resistant and waterproof enclosure
Supports up to 4 input strings
High voltage (1000V DC) rating
Simplified wiring for multiple solar panel strings
Flexible MCB integration as per system requirements
