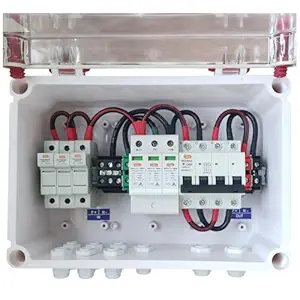

AJB 4 IN-1OUT 1000V (4 Series x ≤20 Panels)
HAVELLS MCB / HAVELLS SPD / HAVELLS FUSE
₹4550.00
Product Description:
AJB 4 IN-1 OUT 1000V is a high-quality, compact Solar Junction Box designed for efficient and safe solar panel connections. Suitable for solar arrays with up to 4 series and 20 panels per string, it integrates essential safety and protection components in one robust unit. The junction box comes pre-fitted with MCB (Miniature Circuit Breaker), SPD (Surge Protection Device), and Fuse, ensuring complete protection against overcurrent, short-circuits, and lightning surges.
This IP65 rated enclosure is durable, weatherproof, and ideal for both residential and commercial solar installations. It simplifies solar wiring, reduces maintenance, and improves system reliability.
Key Features:
Supports 4 series connections, max 20 panels per string
Pre-installed MCB, SPD, and Fuse for complete protection
IP65 weatherproof enclosure for outdoor use
Compact and lightweight design for easy installation
High-quality terminals for reliable and secure wiring
Compatible with solar panels up to 1000V DC
Technical Specifications:
Parameter | Specification |
|---|---|
Model | AJB 4 IN-1 OUT 1000V |
Maximum Voltage | 1000V DC |
Input | 4 Series (up to 20 panels per string) |
Output | 1 OUT |
Protection | MCB, SPD, Fuse |
IP Rating | IP65 (dust and waterproof) |
Material | ABS Flame Retardant / Polycarbonate |
Operating Temperature | -10°C to +60°C |
Mounting Type | Wall-mounted / Outdoor |
Application | Solar PV systems, Residential & Commercial |
Standards Compliance | IEC 60947-2, IEC 61643 |
