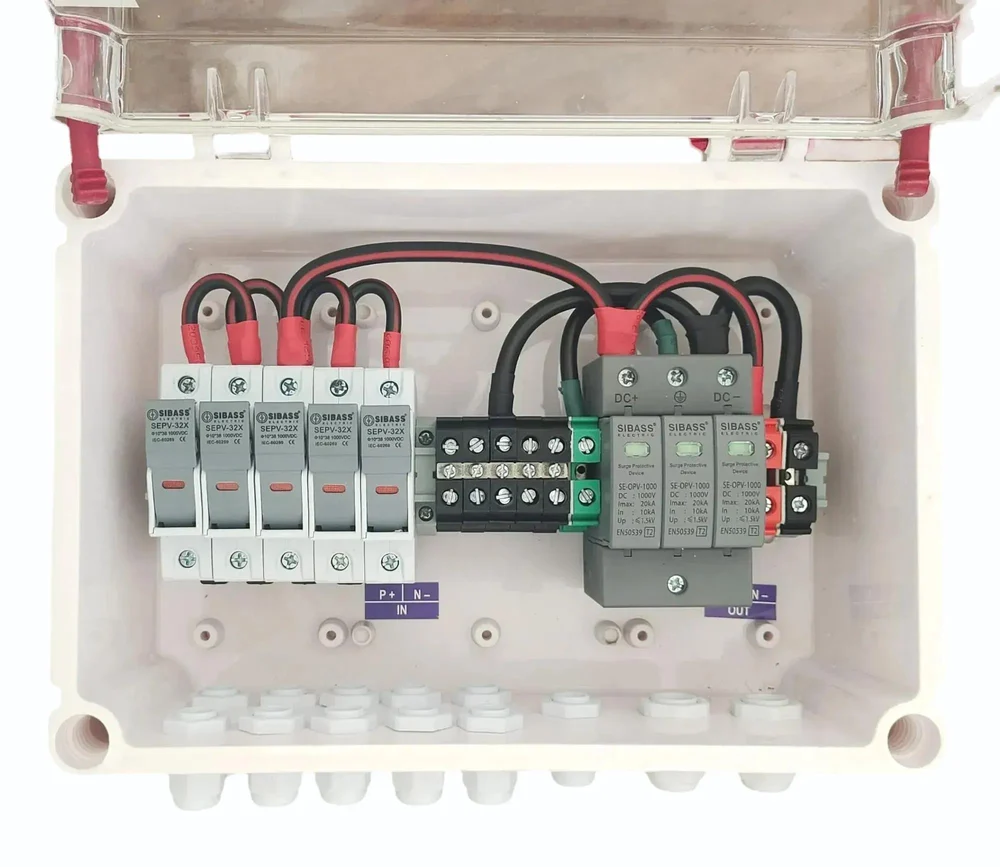

AJB 5 IN-1OUT 1000V (5 Series x ≤20 Panels)
HAVELLS FUSE / HAVELLS SPD
₹3445.00
🛠️ Product Description
The AJB 5 IN-1 OUT 1000V is a high-performance Array Junction Box designed for solar PV systems. Built for reliability and efficiency, this junction box supports up to 5 input strings and consolidates them into 1 output with a maximum system voltage of 1000V DC. Ideal for solar panel arrays with up to 20 modules per string, this robust unit ensures safe and organized cable management, reduced installation time, and enhanced system performance.
This version comes without MCBs (No Circuit Breakers), allowing flexibility to install custom protection devices based on project requirements. It is suitable for residential, commercial, and industrial solar installations.
📊 Key Features
✔️ Supports up to 5 solar string inputs
✔️ Single consolidated output for simplified power routing
✔️ 1000V DC Voltage rating – suitable for standard solar applications
✔️ Designed for up to 20 PV modules per string
✔️ No MCB included – customize protection as needed
✔️ Excellent cable management & strain relief
✔️ Rugged, UV-resistant and weatherproof enclosure
✔️ Easy to install and maintain
⚙️ Specifications
Feature | Details |
|---|---|
Model Name | AJB 5 IN-1 OUT 1000V |
Input Configuration | 5 Strings (parallel) |
Output | 1 Output |
Maximum System Voltage | 1000V DC |
String Current (per input) | Typically up to 15–20A* (based on design) |
Maximum Strings Supported | 5 |
Maximum Panels per String | ≤ 20 (based on panel Voc) |
Protection Devices | No MCB included |
Enclosure Material | High-grade weatherproof, UV-resistant |
IP Rating | IP65 / Weatherproof (industry standard) |
Cable Entries | Multiple gland entries for easy wiring |
Operating Temperature | -20°C to +60°C (typical) |
Mounting Type | Wall/Structure Mount |
Standards Compliance | IEC/CE/IS (depending on supplier) |
⚠️ Note: Electrical specs like current rating may vary by manufacturer → Always refer to the actual datasheet if supplied.
🔌 Ideal For
✅ Residential solar rooftop systems
✅ Commercial PV installations
✅ Industrial solar farms
✅ Solar projects needing custom protection devices
🧰 Benefits
✔️ Keeps system wiring clean and organized
✔️ Simplifies maintenance & troubleshooting
✔️ Supports scalable solar configurations
✔️ Reduces field installation time
✔️ Compatible with most string-inverter systems
