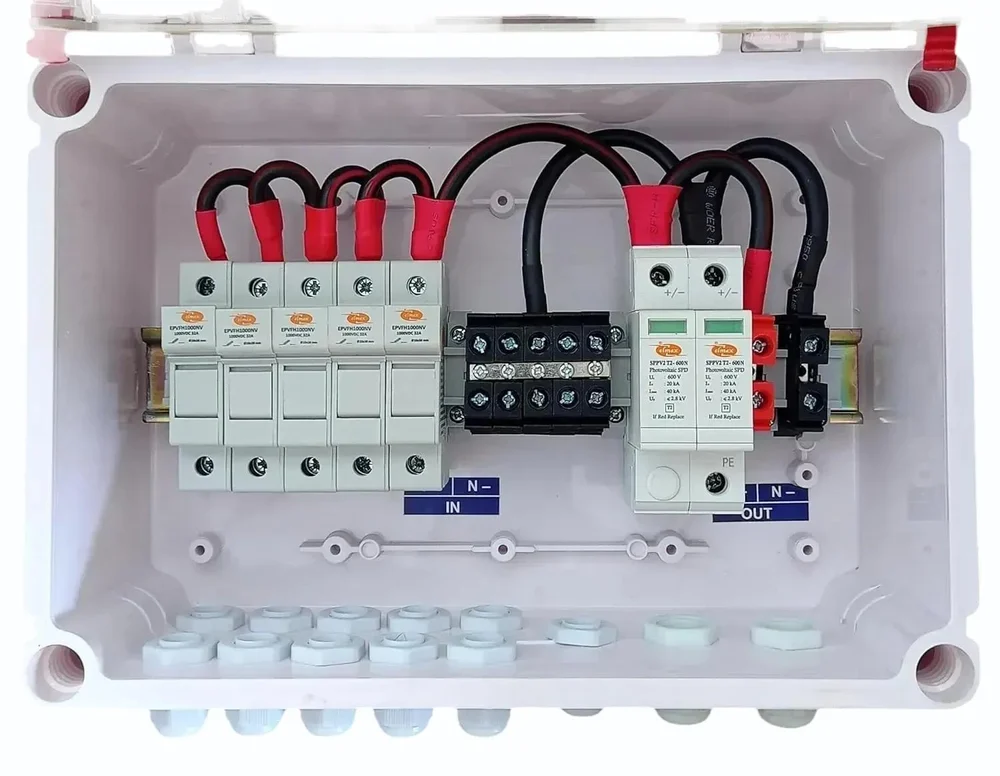

AJB 5 IN-1OUT 600V (5 Series x ≤12 Panels)

Product Description

The AJB 5 IN‑1 OUT 600V (5 Series x ≤12 Panels) NO MCB is a high‑quality Array Junction Box (AJB) designed for reliable and efficient distribution of solar PV arrays. Engineered for both residential and commercial solar installations, this junction box offers secure termination of multiple solar panel strings into a single output, simplifying wiring and improving safety. Built to endure harsh environmental conditions, it supports up to 600V DC system voltage, making it perfectly compatible with modern grid‑tie and off‑grid solar systems.

This model comes with 5 input strings and 1 output, accommodating up to 12 solar panels in series per string. It’s a durable, easy‑to‑install solution for organizing DC wiring, protecting cable connections, and enabling smooth integration of your solar array with inverters or DC combiner systems.

⚡ Note: This version does NOT include an MCB (Miniature Circuit Breaker), allowing flexibility to choose external protection components as per your project needs and local electrical standards.

Key Features

✅ Designed for Solar PV Array Wiring
✅ 5 Input Strings, 1 Output
✅ Supports up to 600V DC
✅ Weatherproof IP65 / Outdoor‑ready
✅ Robust ABS/PC Plastic Housing
✅ Easy Installation & Maintenance
✅ Transparent Cover for Quick Inspection
✅ Perfect for residential, commercial & industrial solar systems

Specifications

Applications

✔ Residential solar power systems
✔ Commercial rooftop installations
✔ Off‑grid & hybrid solar systems
✔ Solar farms & industrial PV plants
✔ Inverter/charge controller interfaces
