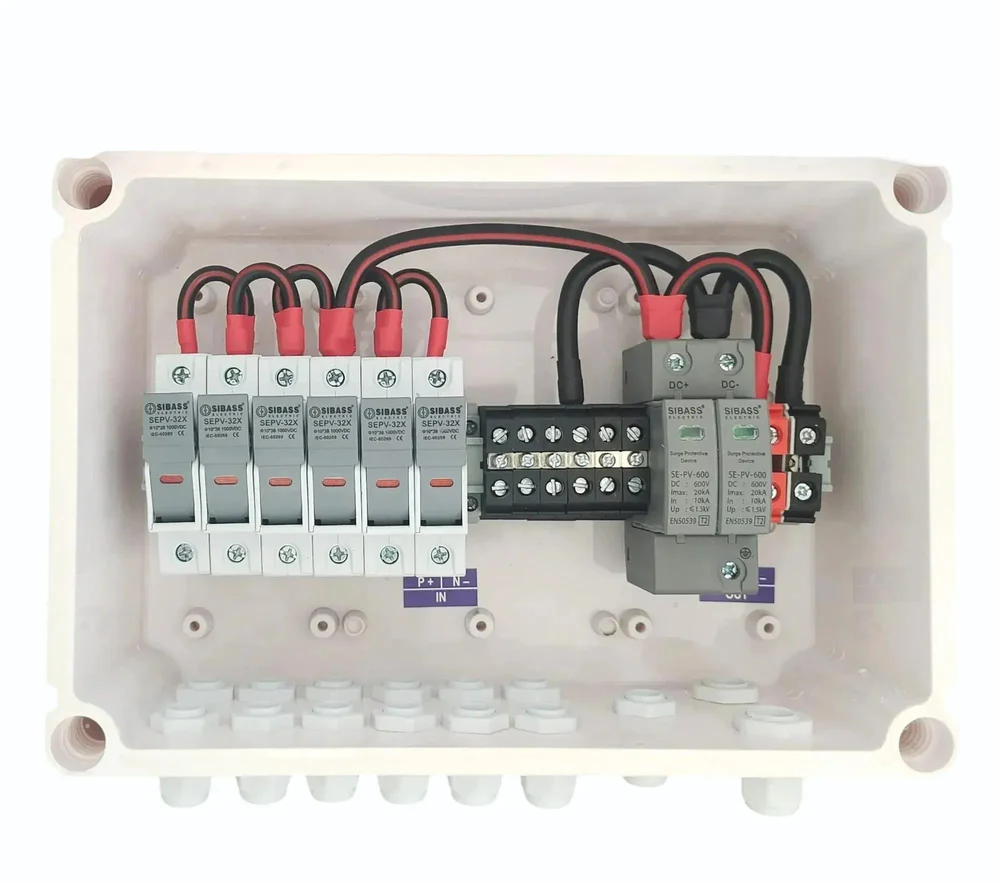

AJB 6 IN-1OUT 600V (6 Series x ≤12 Panels)
ELMEX FUSE / ELMEX SPD
₹2990.00
Product Description
The AJB 6 IN-1 OUT 600V Solar Junction Box is a critical component for PV power systems where multiple solar panel strings must be combined before feeding into inverters or combiner boxes. Built with a sturdy enclosure and premium electrical contacts, this junction box facilitates secure and reliable PV string aggregation, minimizing energy losses and maintaining system efficiency.
Its 600V DC rating ensures safe operation within standard solar voltage limits. The absence of MCB (Miniature Circuit Breaker) provides flexibility for integrators to install branch protection according to site requirements.
Whether for residential rooftop setups or commercial grids, this junction box delivers dependable performance and seamless connectivity.
Specifications
Specification | Details |
|---|---|
Model | AJB 6-in-1 Out 600V |
Input Strings | 6 Series String Inputs |
Panels Supported | Up to 12 PV Panels (2 panels per string max) |
Rated DC Voltage | 600V DC |
Output | Single Output Line |
MCB | Not Included (Field installable) |
Enclosure Material | UV-Resistant & Weatherproof Plastic/ABS |
Connector Type | MC4 Compatible |
Terminal Type | Copper Alloy / Tin-Plated |
Maximum Current | Typically up to 30A per string (must be selected per system) |
Protection | Surge protection / Fuses (optional add-ons) |
Operating Temperature | –20°C to +85°C |
Ingress Protection (IP) | IP65 / Weatherproof (typical) |
Mounting | Wall / Panel Mountable |
Dimensions | Varies by Manufacturer |
Weight | Lightweight for easy installation |
⚠️ Note: Since this product is supplied without an MCB, installers must fit appropriate protection devices like DC MCBs or fuses based on system design and safety standards.
Typical Applications
Residential & Commercial Solar PV installations
Rooftop Solar Panel Arrays
Hybrid Solar Systems
Off-Grid and On-Grid Arrays
Solar Power Combiner Feed-In
