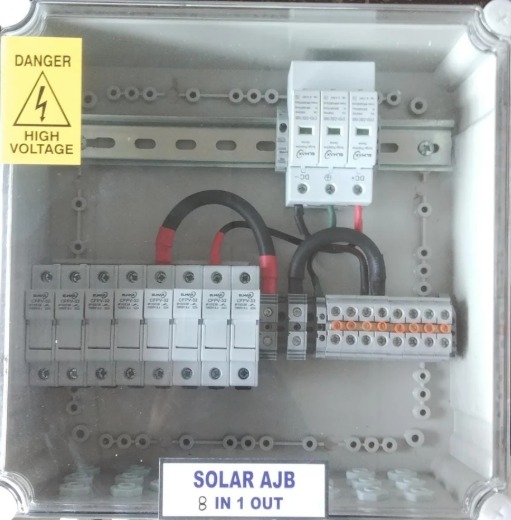

AJB 8 IN-1OUT 1000V (8 Series x ≤20 Panels)
HAVELLS FUSE / HAVELLS SPD
₹5850.00
📌 Product Description
The AJB 8-IN-1 OUT 1000V is a high-performance solar junction box designed to optimize the output and safety of your photovoltaic (PV) array. Engineered for reliability and durability, this junction box efficiently consolidates inputs from up to 8 strings of solar panels (in series), providing a stable single output for connection to your solar inverter or combiner system.
With a 1000V DC rating and robust construction, it is perfect for residential, commercial, and industrial solar installations. This version comes without an MCB (Miniature Circuit Breaker), allowing flexibility to pair it with the MCB of your choice according to site requirements.
This unit is suitable for up to 20 solar panels (depending on configuration) and is made with premium quality materials for long-lasting performance in outdoor environments.
⚙️ Key Features
✔️ 8 Inputs, 1 Output Configuration
✔️ Rated Voltage: 1000V DC
✔️ Suitable for PV arrays with up to 20 panels
✔️ Compact & Reliable Junction Box
✔️ High Quality Weatherproof Enclosure
✔️ Easy installation & maintenance
✔️ No MCB included (MCB can be added separately)
📊 Technical Specifications
Specification | Details |
|---|---|
Model | AJB 8-IN-1 OUT 1000V |
Input Channels | 8 Strings (Series) |
Output | 1 Output |
Max System Voltage | 1000V DC |
Rated Current | Typically up to 30A per input (confirm as per panel specs) |
Recommended Panel Count | ≤ 20 panels (configuration dependent) |
Protection | Weatherproof IP-rated enclosure |
Mounting | Wall / Structure Mountable |
Enclosure Material | High-strength UV stabilized plastic / metal |
Terminal Blocks | Heavy duty copper / brass |
Safety | Compliant with industry DC safety standards |
MCB | Not included |
Certifications | CE / RoHS / IEC compatible (if applicable) |
Operating Temperature | –20°C to +85°C (typical) |
Warranty | 1–3 Years (brand dependent) |
