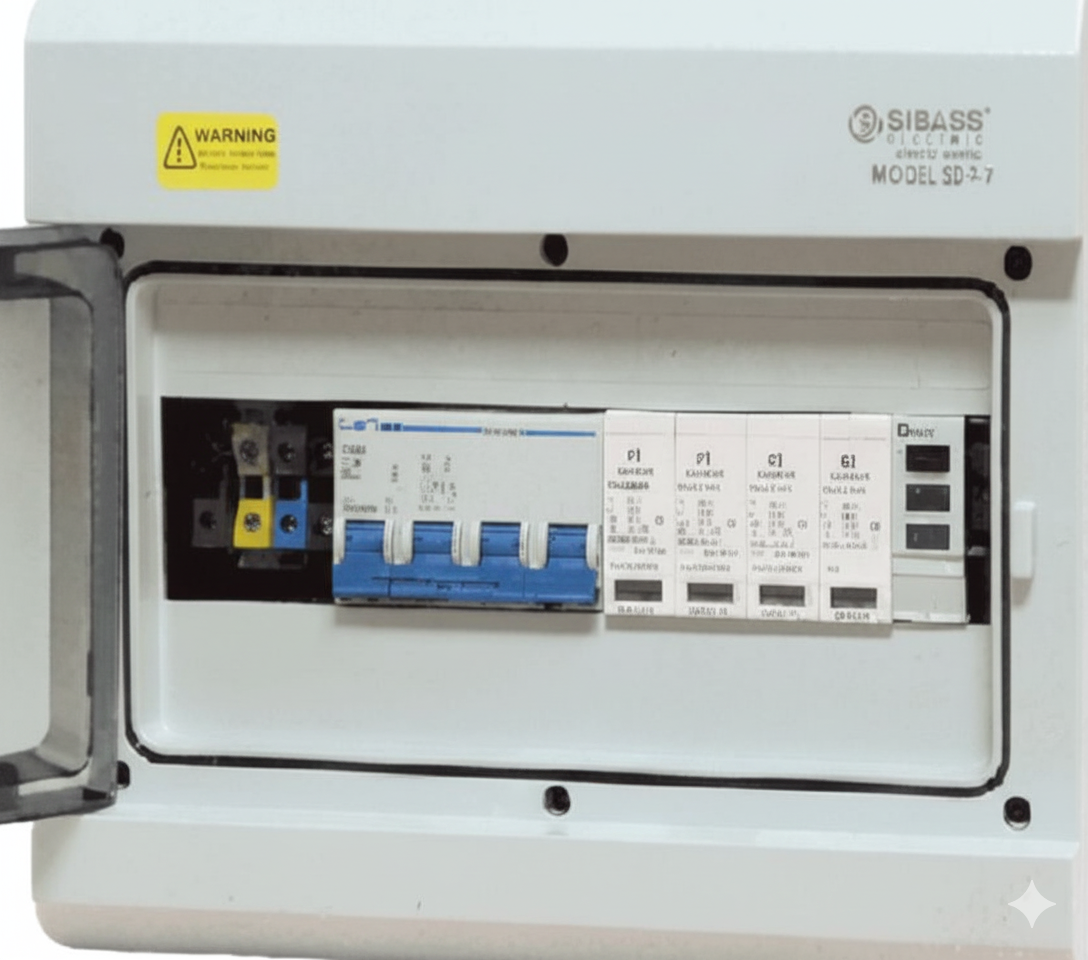

DCDB 1 IN-1OUT 1000V (1 Series x ≤20 Panels) DOOR TYPE

Model

DCDB 1 IN-1 OUT 1000V (Door Type)

Rated Voltage

1000V DC

Input

1 string IN (up to 20 panels)

Output

1 line OUT to inverter / controller

Maximum PV String Current

≤20A / 30A / 40A (model dependent)

Protection

DC Fuse / DC MCB / DC SPD

Surge Protection

Optional SPD (Class II)

Enclosure Type

Door Type / Lockable

Enclosure Material

Powder Coated Sheet Steel / ABS (UV stabilized)

IP Rating

IP65 (Dust & Water resistant)

Mounting

Wall-mount (recommended)

Busbar Material

Tinned Copper / Brass

Indication

LED Fuse / System OK

Operating Temperature

-20°C to +60°C

Certification

CE / IEC / RoHS (as applicable)

Suitable For

Rooftop Solar System
