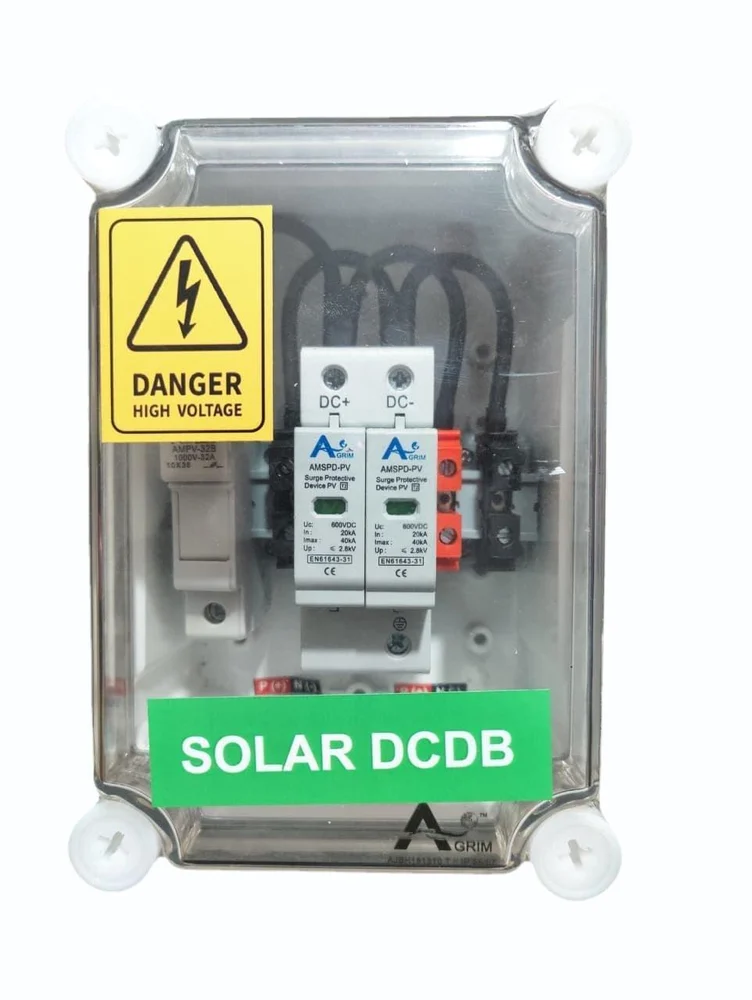

DCDB 1 IN-1OUT 600V (1 Series x ≤12 Panels) DOOR TYPE

📝 Product Description

The DCDB 1 IN-1 OUT 600V – Door Type is a high-quality DC Distribution Box designed specifically for small to medium solar PV systems with up to 12 solar panels. This compact and robust unit provides a safe and efficient distribution point for DC power between the solar array and downstream equipment such as inverters or charge controllers.

Constructed with a durable metal enclosure and lockable door, this DCDB ensures secure housing of all internal components while offering easy access for maintenance. It incorporates industry-standard protection features such as DC Isolators, Surge Protection Devices (SPD), DC Fuse Holders, and busbars that are engineered to withstand up to 600 V DC – making it suitable for both residential and commercial solar installations.

With clear labeling, reliable safety components, and a structured internal layout, the DCDB minimizes electrical risks, improves serviceability, and enhances overall system reliability.

⚙️ Key Features

🔹 1 Input & 1 Output for streamlined DC power flow
🔹 Rated Voltage: 600 V DC for wide compatibility with solar arrays
🔹 Supports up to 12 Solar Panels (1 Series)
🔹 Robust Door Type Enclosure with lockable handle
🔹 High-quality DC Isolator Switch for safe manual disconnect
🔹 Surge Protection Device (SPD) for transient voltage protection
🔹 Easy access for maintenance and inspection
🔹 Clear terminal labeling & organized internal wiring
🔹 Compliance with electrical safety standards

📊 Technical Specifications
