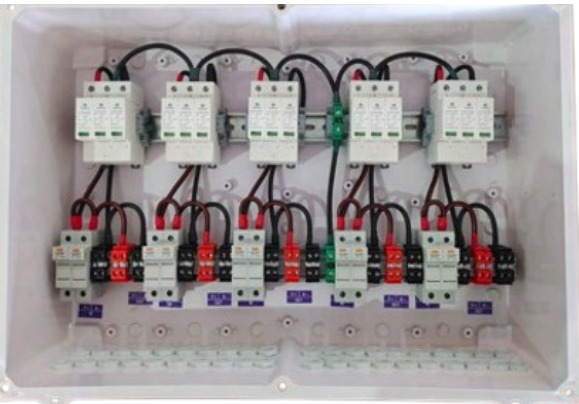

DCDB 10 IN-10 OUT 1000V 5-SPD (10 Series x ≤20 Panels)
HAVELLS FUSE / HAVELLS SPD
₹13990.00
🔌 DCDB 10 IN – 10 OUT 1000V | 5-SPD (10 Series × ≤20 Panels) – Without MCB
📌 Product Description
DC Distribution Box (DCDB) 10 IN – 10 OUT 1000V specially designed hai large on-grid & off-grid solar PV systems ke liye.
Ye DCDB 10 solar strings ko safely combine karke single inverter input tak power transfer karta hai.
Is model me 5 High-performance Surge Protection Devices (SPD) lage hote hain jo lightning, surge aur over-voltage se inverter aur solar panels ko protect karte hain.
Ye unit 10 series strings (maximum 20 solar panels) ke configuration ke liye suitable hai.
⚠️ Note: Is DCDB me MCB include nahi hai, isliye ye un systems ke liye best hai jahan external protection already installed ho.
⚙️ Technical Specifications
Parameter | Details |
|---|---|
Product Type | DC Distribution Box (DCDB) |
Input | 10 In |
Output | 10 Out |
Max System Voltage | 1000V DC |
String Configuration | 10 Series × ≤20 Solar Panels |
Surge Protection | 5 SPD (Type-2) |
MCB | ❌ Not Included |
Application | On-Grid / Off-Grid Solar PV System |
Enclosure Material | Powder-Coated Metal / ABS (as per model) |
Degree of Protection | IP65 (Outdoor Use) |
Mounting Type | Wall Mount |
Cable Entry | Bottom / Side |
Operating Temperature | -10°C to +60°C |
Standards | IEC / MNRE Compliant |
✅ Key Features
Supports 10 Solar Strings
1000V DC Rated for high-capacity solar plants
5 SPD for lightning & surge protection
Strong IP65 weather-proof enclosure
Easy installation & maintenance
Ideal for commercial & industrial solar projects
Long service life & reliable performance
🏭 Applications
Commercial Solar Power Plants
Industrial Rooftop Solar Systems
Ground-Mounted Solar PV Projects
Large On-Grid / Hybrid Solar Installations
📦 What’s Included
DCDB Enclosure
Pre-installed 5 SPD
Terminal Blocks
Earthing Provision
