DCDB 2 IN-2OUT 1000V (2 Series x ≤20 Panels)- 2 SPD
ELMEX FUSE / ELMEX SPD
₹3640.00
Description:

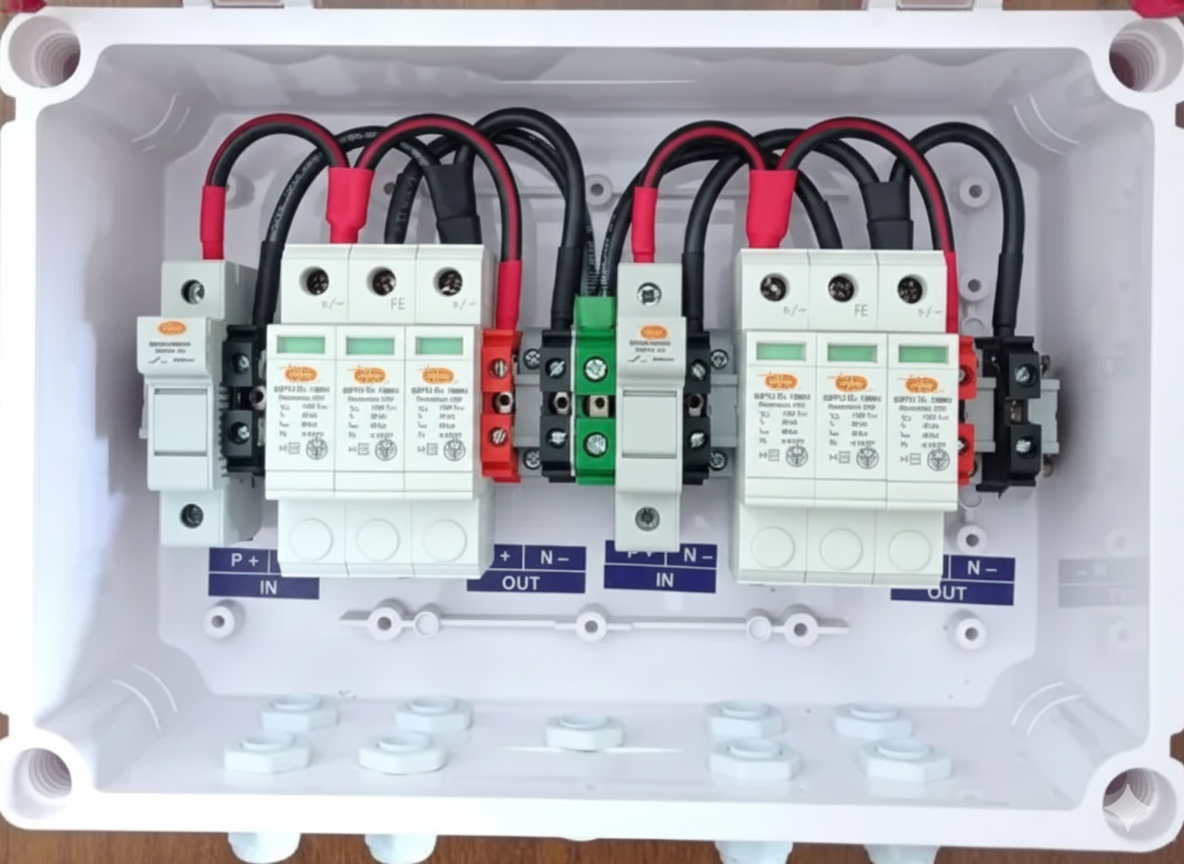

The DCDB (DC Distribution Box) 2 IN – 2 OUT is designed for solar PV systems up to 1000V DC, providing a reliable and safe connection for 2 series strings of solar panels (≤20 panels per string). This compact and robust distribution box comes equipped with 2 SPDs (Surge Protection Devices) for lightning and surge protection.
Unlike conventional DCDBs, this model does not include MCBs and is designed to operate with fuses only, ensuring simplified protection and maintenance. Ideal for small to medium solar PV installations, this DCDB ensures efficient current distribution, protection, and system safety.
Key Features:
High voltage DC isolation up to 1000V DC
Supports 2 series strings (≤20 panels per string)
Equipped with 2 Surge Protection Devices (SPD) for enhanced system protection
Fuse-protected outputs (no MCB included)
Durable, weather-resistant enclosure for indoor/outdoor installations
Easy installation with standard wiring terminals
Compact and modular design for small to medium solar PV setups
Technical Specifications:
Parameter | Specification |
|---|---|
Input | 2 IN (Series Strings, ≤20 Panels each) |
Output | 2 OUT (To Inverter / Load) |
Rated Voltage | 1000V DC Max |
Surge Protection | 2 x SPD (Type II) |
Protection Type | Fuses Only (No MCB) |
Enclosure Material | High-quality, UV-resistant, ABS / Metal (specify as per model) |
IP Rating | IP65 (Weatherproof) |
Mounting | Wall-mountable |
Connection Terminals | Screw terminals suitable for PV cables |
Operating Temperature | -25°C to +60°C |
Compliance | IEC 61643-31, IEC 60947-3, IEC 60364 |
Applications:
Rooftop solar PV systems
Small & medium solar power installations
Solar inverters and battery-based solar setups
Protection and isolation of PV strings from lightning and surges
