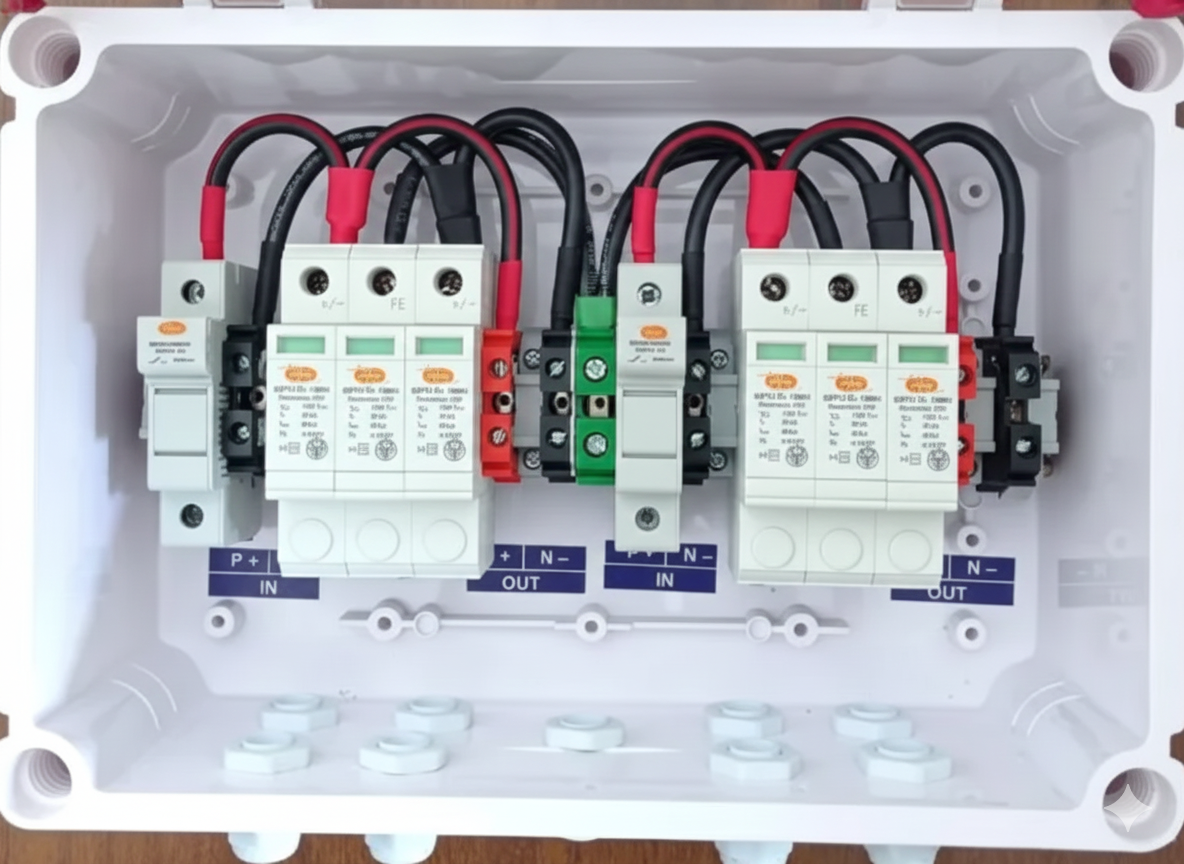

DCDB 2 IN-2OUT 1000V (2 Series x ≤20 Panels)- 2 SPD

Product Description:

The DCDB (Direct Current Distribution Box) 2 IN-2 OUT 1000V is designed for safe and efficient DC power distribution in solar PV systems. Suitable for 2 series strings with up to 20 solar panels, this robust box ensures reliable operation while protecting your system from overcurrent, short circuits, and lightning surges.

Equipped with 2 SPDs (Surge Protection Devices), MCBs (Miniature Circuit Breakers), and fuses, the DCDB guarantees optimal safety and long-term durability for both residential and commercial solar installations.

Ideal for: Solar rooftop and ground-mounted PV systems, ensuring safe, centralized protection and management of DC circuits.

Key Features:

• Rated Voltage: 1000V DC

• Number of Inputs: 2 IN (2 series strings)

• Number of Outputs: 2 OUT

• Maximum Panels Supported: ≤ 20 panels per series

• Protection:

  • 2 SPDs (Type II) for surge protection

  • MCB for overcurrent protection

  • Fuse for short-circuit protection

• High-quality, flame-retardant enclosure

• IP65 rated – weatherproof & dustproof

• Easy installation & maintenance

• Compact and modular design for rooftop and ground installations

Technical Specifications:
