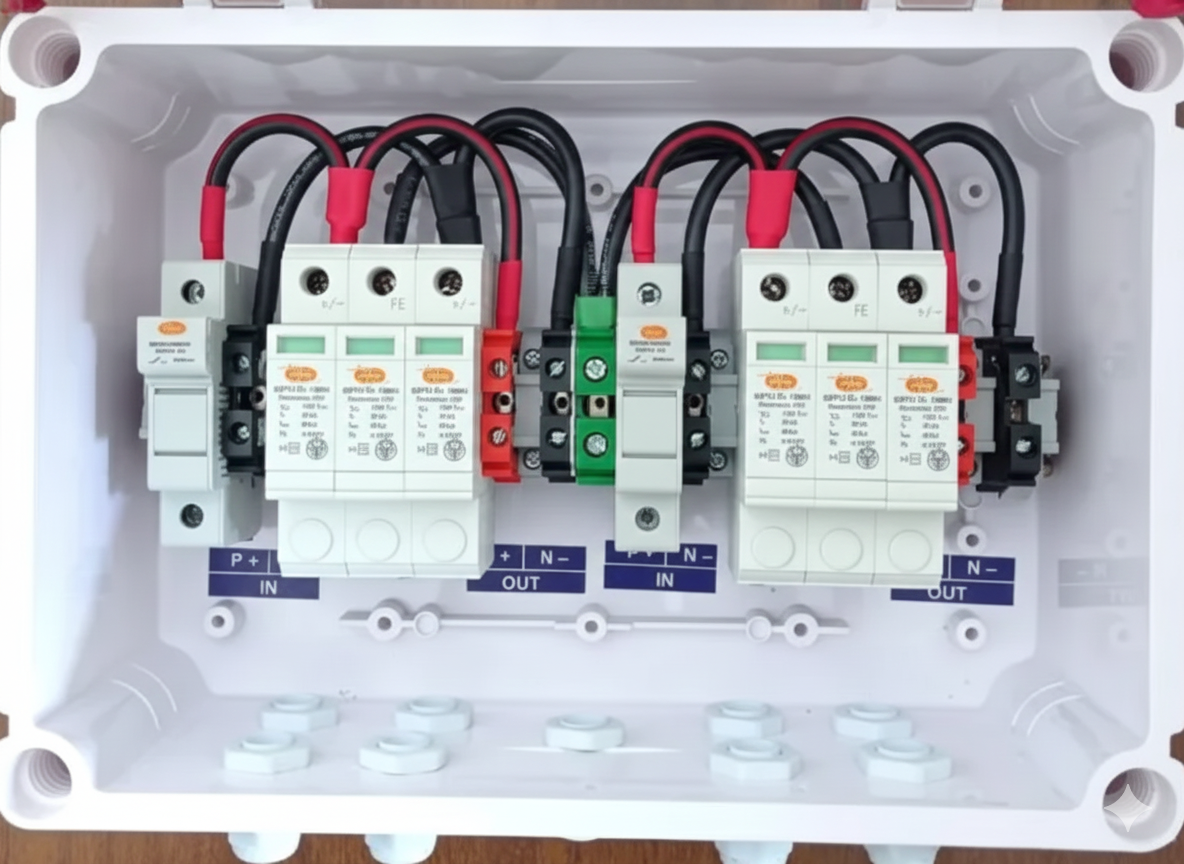

DCDB 2 IN-2OUT 1000V (2 Series x ≤20 Panels)- 2 SPD
HAVELLS MCB / HAVELLS SPD / HAVELLS FUSE
₹5980.00
Product Description:
The DCDB (Direct Current Distribution Box) 2 IN-2 OUT 1000V is designed for safe and efficient DC power distribution in solar PV systems. Suitable for 2 series strings with up to 20 solar panels, this robust box ensures reliable operation while protecting your system from overcurrent, short circuits, and lightning surges.
Equipped with 2 SPDs (Surge Protection Devices), MCBs (Miniature Circuit Breakers), and fuses, the DCDB guarantees optimal safety and long-term durability for both residential and commercial solar installations.
Ideal for: Solar rooftop and ground-mounted PV systems, ensuring safe, centralized protection and management of DC circuits.
Key Features:
Rated Voltage: 1000V DC
Number of Inputs: 2 IN (2 series strings)
Number of Outputs: 2 OUT
Maximum Panels Supported: ≤ 20 panels per series
Protection:
2 SPDs (Type II) for surge protection
MCB for overcurrent protection
Fuse for short-circuit protection
High-quality, flame-retardant enclosure
IP65 rated – weatherproof & dustproof
Easy installation & maintenance
Compact and modular design for rooftop and ground installations
Technical Specifications:
Parameter | Specification |
|---|---|
Rated Voltage | 1000V DC |
Input Strings | 2 IN |
Output Strings | 2 OUT |
Maximum Panels per String | ≤ 20 |
Surge Protection Device | 2 Nos, Type II SPD |
Overcurrent Protection | MCB (1 per output) |
Short Circuit Protection | Fuse (1 per output) |
Enclosure Material | Flame Retardant, UV Stabilized |
Protection Rating | IP65 (Dust & Water Proof) |
Mounting | Wall / Structure Mount |
Operating Temperature | -10°C to 60°C |
Standards | IEC/IS Compliance (IEC 61439, IEC 61643) |
