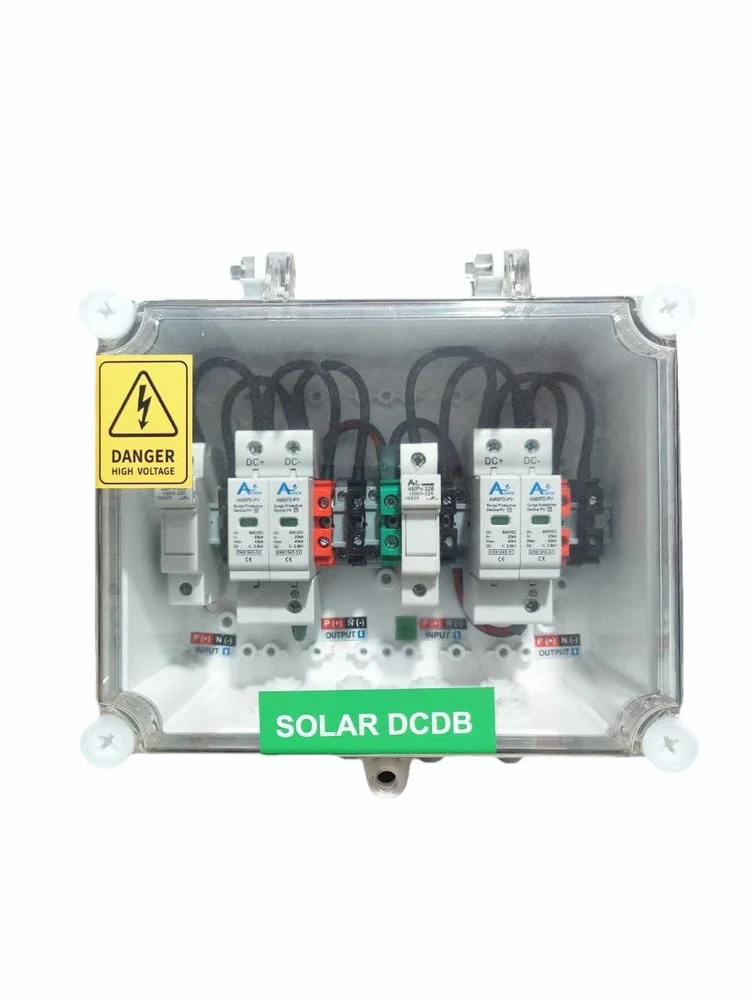

DCDB 2 IN-2OUT 600V (2 Series x ≤12 Panels)- 2 SPD
ELMEX FUSE / ELMEX SPD/ HAVELLS MCB
₹3185.00
🔹 Product Description
DC Distribution Box (DCDB) 2 IN – 2 OUT 600V specially design kiya gaya hai solar PV systems ke liye jahan 2 string inputs ko safely combine karke 2 DC outputs inverter tak diya jata hai.
Is DCDB me 2 Series strings (each up to 12 solar panels) connect ki ja sakti hain, jo high voltage protection (600V DC) ke sath stable aur secure power flow ensure karta hai.
Box me 2 Surge Protection Devices (SPD – Type 2) installed hote hain jo lightning, surge aur voltage spikes se solar inverter aur panels ko protect karte hain.
Industrial-grade enclosure, high-quality DC isolators aur fuses ke sath ye DCDB commercial, industrial aur large rooftop solar installations ke liye ideal solution hai.
🔹 Key Applications
Rooftop Solar Power Plants
Commercial & Industrial Solar Projects
On-grid / Off-grid / Hybrid Solar Systems
Solar Inverter Input Protection
🔹 Technical Specifications
Parameter | Specification |
|---|---|
Product Type | DC Distribution Box (DCDB) |
Input | 2 DC Inputs |
Output | 2 DC Outputs |
Max System Voltage | 600V DC |
String Configuration | 2 Series Strings |
Max Panels per String | ≤ 12 Panels |
Surge Protection | 2 × DC SPD (Type 2) |
SPD Voltage Rating | 600V DC |
Protection Devices | DC Fuse / MCB |
Enclosure Material | Powder Coated / FRP / Metal (as per requirement) |
Degree of Protection | IP65 (Outdoor Use) |
Operating Temperature | -10°C to +55°C |
Mounting Type | Wall Mounted |
Compliance | IEC / IS Standards |
🔹 Key Features
✔️ High voltage DC protection up to 600V
✔️ Dual input & dual output configuration
✔️ 2 DC SPD for surge & lightning protection
✔️ Weatherproof IP65 enclosure
✔️ Low maintenance & long service life
✔️ Safe and reliable power distribution
