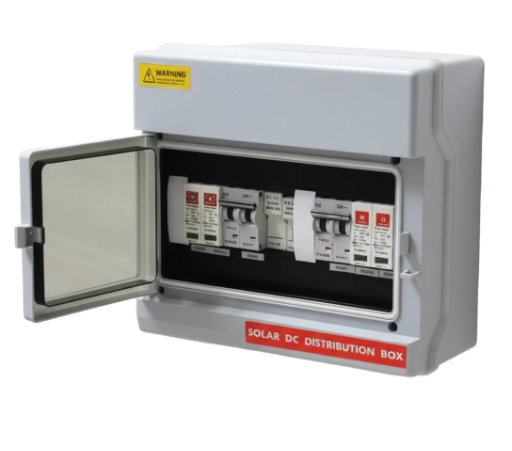

DCDB 2 IN-2OUT 600V (2 Series x ≤12 Panels) DOOR TYPE

🔹 Product Name

DCDB 2 IN-2 OUT 600V – Door Type

📌 Product Description

The DCDB 2 IN-2 OUT 600V Door Type is a high-performance and reliable DC Distribution Box designed for solar photovoltaic (PV) systems. Engineered to handle up to 600 V DC, it efficiently distributes DC power from solar panels to downstream devices, while ensuring safety and protection for electrical equipment.

Built with a door-type enclosure, this DCDB ensures easy access for installation, maintenance, and monitoring. It supports two input lines from solar arrays and two output circuits, making it ideal for small to medium solar power systems with up to 12 solar panels configured in series.

Suitable for both residential and commercial solar installations, the DCDB enhances system reliability with robust safety features such as surge protection, branch circuit protection, and isolation switches. Its sturdy construction makes it suitable for indoor and semi-outdoor wall-mounted applications.

⚙️ Key Features

✔️ Rated Voltage: 600 V DC
✔️ Configuration: 2 Inputs × 2 Outputs
✔️ Max Panels: Supports up to 12 series panels
✔️ Door-Type Enclosure: Easy access for servicing
✔️ Compact & Modular Design
✔️ Wall-Mount Installation
✔️ Safety Protection:
• DC Isolation Switch
• MCB / Fuse Protection
• Surge Protection Device (optional)
✔️ Clear labeling of input/output terminals
✔️ High electrical insulation & fire resistance
✔️ IP Rated Enclosure for dust & water protection (e.g., IP65)
✔️ Complies with IEC / IS standards

🧩 Technical Specifications

🛠️ Applications

✔️ Solar PV rooftop systems
✔️ Commercial solar installations
✔️ Industrial power plants
✔️ Off-grid & hybrid solar systems
✔️ Agricultural solar projects
