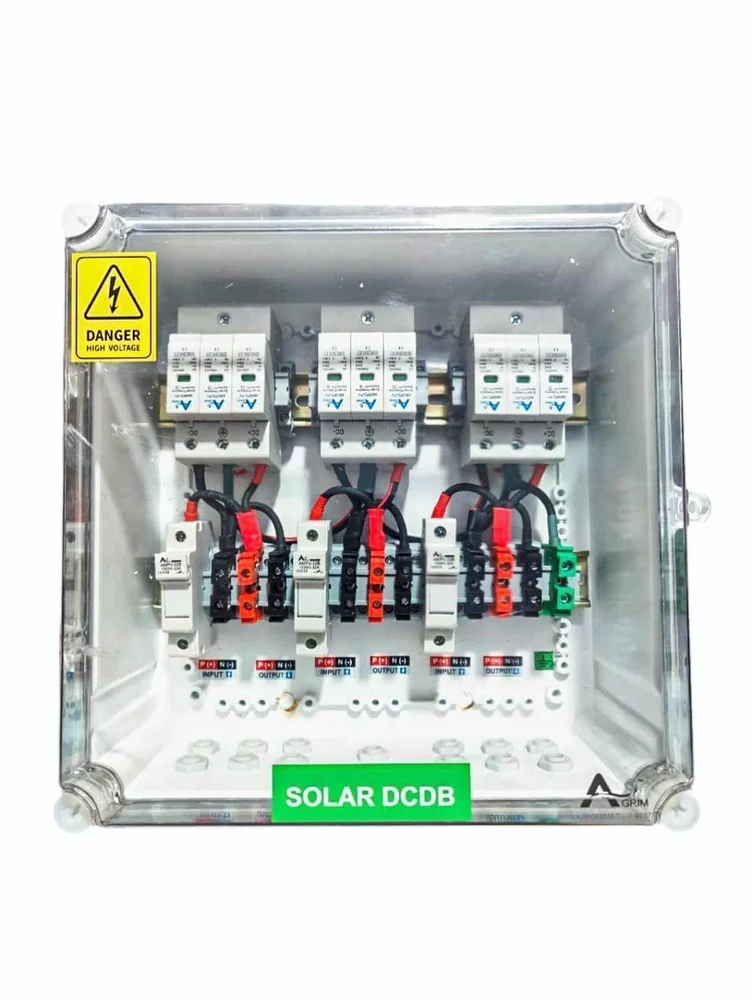

DCDB 3 IN-3 OUT 1000V 3-SPD (3 Series x ≤20 Panels)
HAVELLS FUSE / HAVELLS SPD
₹5785.00
Product Description:
DCDB (DC Distribution Box) designed for solar PV systems ensures safe and organized DC power distribution from solar panels to the inverter. This model supports 3 input strings and 3 output lines, capable of handling up to 20 panels per series. It is built for high voltage solar systems up to 1000V and comes with 3 Surge Protection Devices (SPD) to safeguard against lightning and surges.
⚠️ Note: This model does NOT include MCBs. MCBs should be selected separately according to system requirements.
Ideal for:
Residential, commercial, and industrial solar installations
Systems with multiple panel strings in series
Areas with frequent voltage fluctuations or lightning activity
Key Features:
3 Input / 3 Output configuration
Supports up to 20 solar panels per series
Rated for 1000V DC maximum system voltage
3-SPD (Surge Protection Devices) included for safety
Compact & durable enclosure suitable for wall mounting
Transparent cover for easy inspection
High-quality terminals for secure cable connection
NO MCB included – allows customization as per system design
Technical Specifications:
Parameter | Specification |
|---|---|
Input Strings | 3 (Series) |
Output Lines | 3 |
Max Panels per Series | ≤ 20 Panels |
System Voltage | 1000V DC |
Surge Protection | 3 SPD included |
MCB | Not included |
Enclosure | IP65 / Weatherproof (Wall Mountable) |
Material | Powder-coated sheet metal / ABS (depending on model) |
Terminals | Copper / Tin-plated for corrosion resistance |
Operating Temperature | -10°C to +60°C |
Dimensions | Standard (customizable as per model) |
Mounting | Wall mount / Indoor & outdoor suitable |
