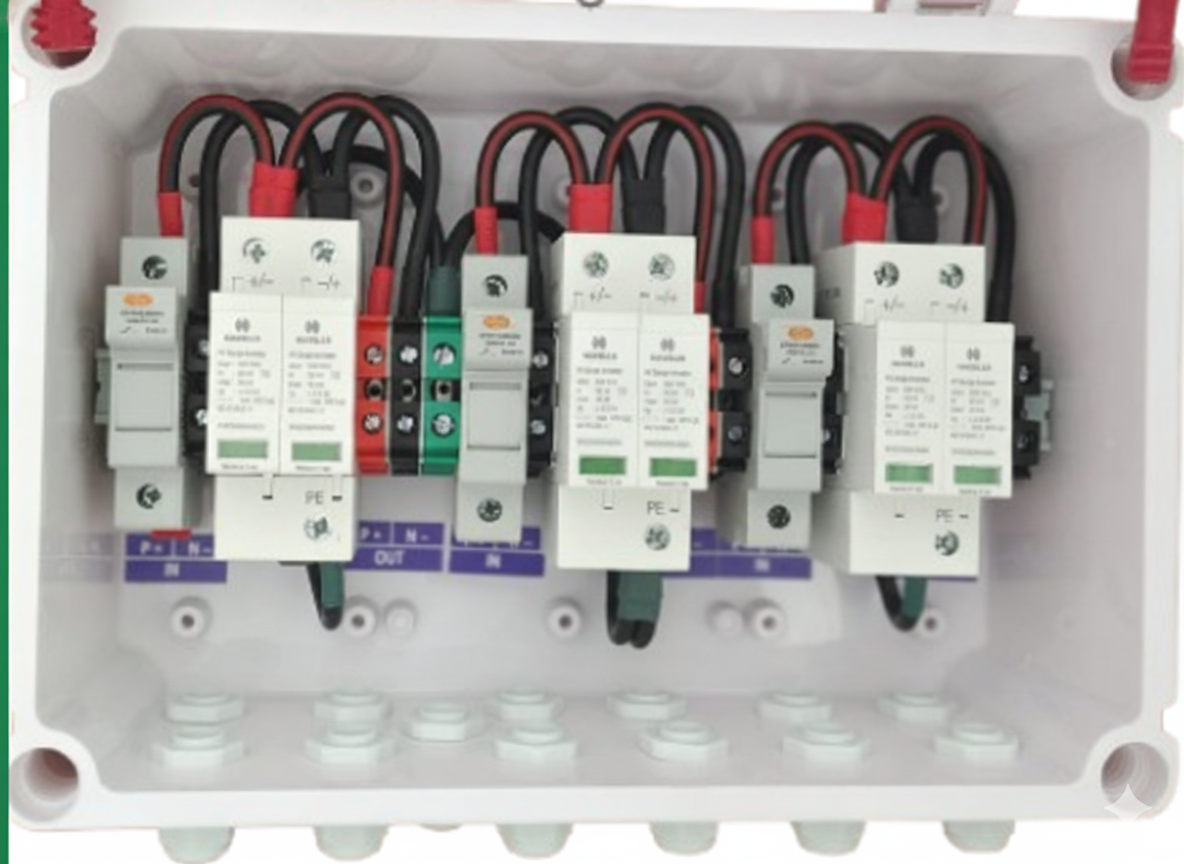

DCDB 3 IN-3 OUT 600V (3 Series x ≤12 Panels)
ELMEX FUSE / ELMEX SPD
₹3998.00
Product Description:
DCDB (DC Distribution Box) designed specifically for solar PV systems to ensure safe and reliable distribution of DC power from solar panels to inverters. This model features 3 inputs and 3 outputs, suitable for connecting up to 12 solar panels per series.
It comes without MCBs, focusing on essential protection through SPD (Surge Protection Device) and fuses. The robust design ensures overcurrent protection, surge protection, and safe isolation of solar strings. Ideal for small to medium rooftop solar installations.
Key Features:
Compact and durable enclosure for outdoor and indoor installation
Rated for DC voltage up to 600V
3 IN – 3 OUT configuration for series-connected solar panels
Protection: SPD + Fuse (no MCB included)
Designed for up to 3 series strings of ≤12 panels each
Ensures protection against overvoltage, surges, and short circuits
Easy wiring and maintenance
Technical Specifications:
Parameter | Specification |
|---|---|
Rated Voltage | 600V DC |
Input | 3 Inputs (3 series strings) |
Output | 3 Outputs |
Maximum Panels per Series | ≤12 Panels |
Protection | SPD (Surge Protection Device), Fuse (no MCB) |
Enclosure | Weatherproof / IP65 (optional, confirm) |
Material | Powder-coated sheet metal / ABS (depending on model) |
Mounting | Wall-mounted |
Surge Protection | Type II SPD, rated for DC systems |
Operating Temperature | -10°C to +60°C |
Standards | IEC 60364, IEC 60947 (for fuse & SPD compliance) |
Accessories | DC busbars, terminals, fuses, SPD |
✅ Applications:
Rooftop solar PV systems
Small to medium solar installations
Industrial and commercial solar setups
DC string protection for inverters
