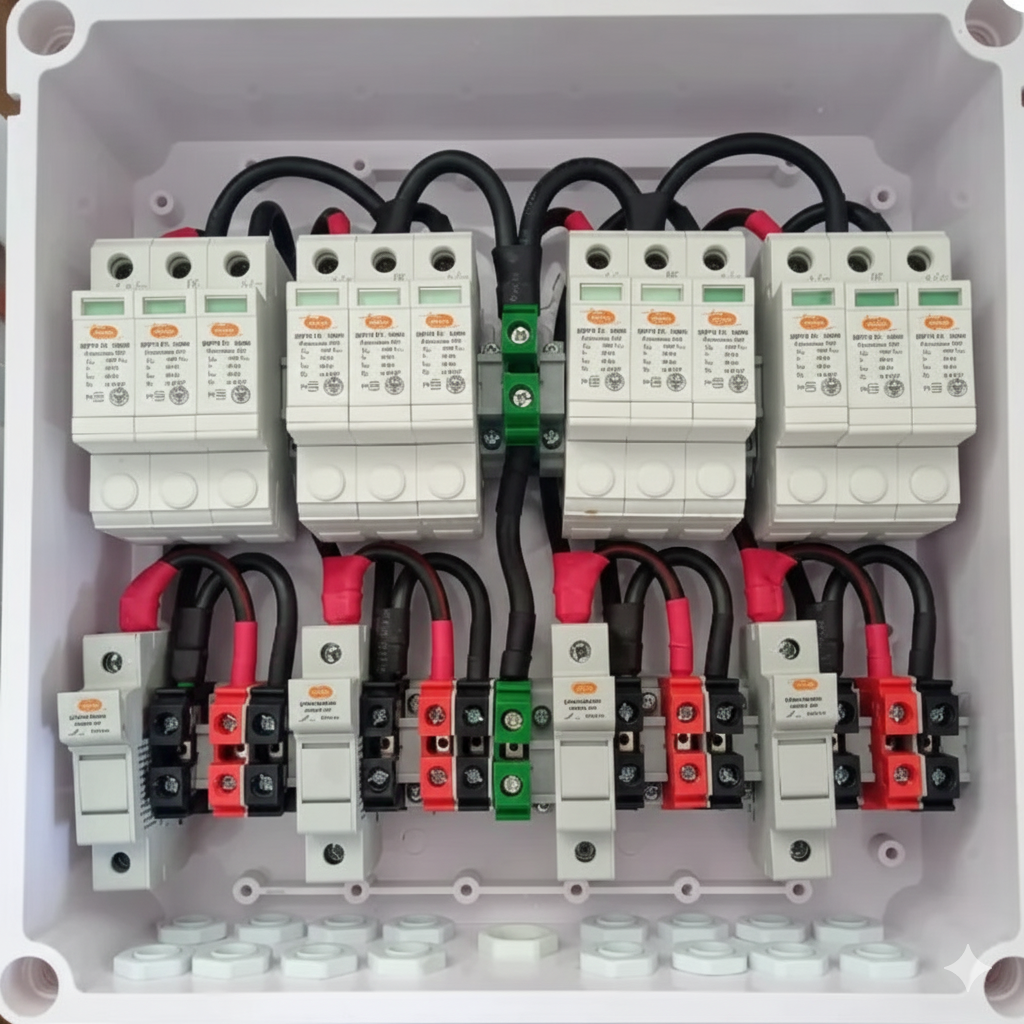

DCDB 4 IN-4 OUT 1000V 2-SPD (4 Series x ≤20 Panels)
AGRIM FUSE / AGRIM SPD
₹4550.00
Product Description:
DCDB (Direct Current Distribution Box) 4 IN-4 OUT 1000V 2-SPD designed for solar PV systems ensures safe and efficient distribution of DC power from your solar panels to the inverter. This high-quality DCDB is equipped with 2 lightning/surge protection devices (SPD) for protection against voltage spikes, ensuring system longevity and safety.
Ideal for 4 series solar panels configuration, supporting up to 20 panels per series, this DCDB comes without MCB, allowing you to select circuit protection as per your system requirements. Robust, compact, and durable, it is perfect for both residential and commercial solar PV installations.
Key Features:
4 IN – 4 OUT DC distribution configuration
Maximum DC Voltage: 1000V
2 SPD (Surge Protection Devices) for lightning and surge protection
Supports 4 series x ≤20 panels
Compact and durable design for long-term use
MCB not included – flexible customization possible
Easy installation for solar rooftop or ground-mounted systems
Technical Specifications:
Parameter | Specification |
|---|---|
Model | DCDB 4 IN-4 OUT 1000V 2-SPD |
Number of Inputs | 4 |
Number of Outputs | 4 |
Maximum Panels per Series | ≤20 |
Maximum DC Voltage | 1000 V |
Surge Protection Devices | 2 SPDs |
MCB | Not Included |
Protection | Overvoltage / Surge |
Mounting | Wall-mounted |
Enclosure Material | ABS / Metal (specify per model) |
IP Rating | IP65 (typical for outdoor use) |
Application | Solar PV systems – residential & commercial |
