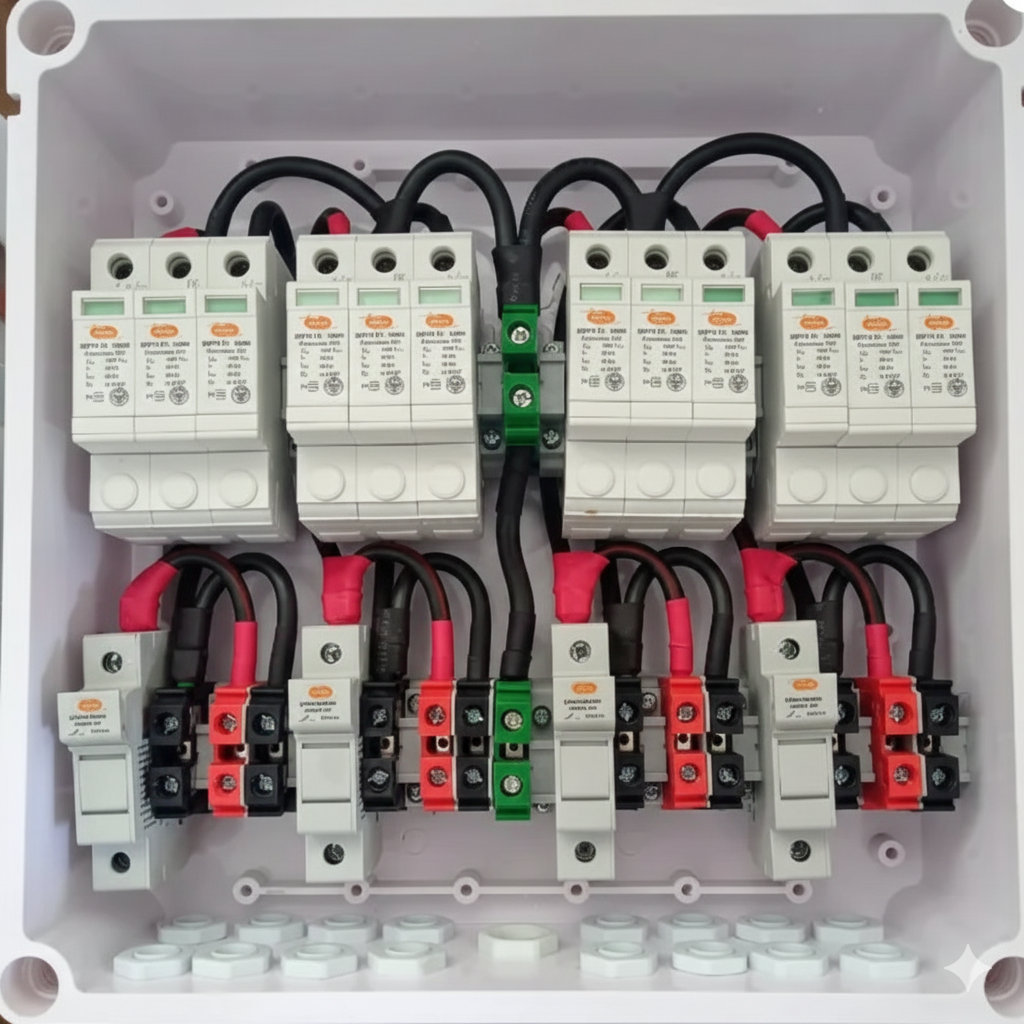

DCDB 4 IN-4 OUT 1000V 4-SPD (4 Series x ≤20 Panels)
HAVELLS FUSE / HAVELLS SPD
₹7605.00
🔷 Product Description
DCDB 4 IN – 4 OUT 1000V (4 SPD) ek high-quality Solar DC Distribution Box hai, jo solar PV systems me multiple string inputs ko safely combine aur distribute karne ke liye design kiya gaya hai.
Ye DCDB 4 series strings (≤20 panels) ko support karta hai aur 1000V DC system ke liye suitable hai. Isme 4 Surge Protection Devices (SPD) diye gaye hain jo lightning, voltage surge aur transient overvoltage se inverter aur solar panels ko protect karte hain.
Is model me MCB nahi diya gaya hai, isliye ye un installations ke liye best hai jahan external protection devices already available ho ya custom protection configuration chahiye ho.
Commercial aur industrial rooftop solar projects ke liye ye DCDB safe, reliable aur cost-effective solution hai.
⚙️ Specifications
Feature | Details |
|---|---|
Product Type | Solar DC Distribution Box (DCDB) |
Configuration | 4 Input – 4 Output |
System Voltage | Up to 1000V DC |
String Capacity | 4 Series (≤20 Solar Panels) |
Surge Protection | 4 × DC SPD |
SPD Type | Type 2 (Optional Type 1+2 on request) |
MCB | ❌ Not Included |
Enclosure Material | Powder Coated / UV Resistant Polycarbonate |
Enclosure Protection | IP65 (Outdoor Suitable) |
Input / Output Terminals | Heavy Duty Copper Terminals |
Cable Glands | PG Glands for DC Cables |
Operating Temperature | -20°C to +60°C |
Mounting Type | Wall / Structure Mounted |
Application | Rooftop & Ground Mounted Solar PV Systems |
✅ Key Features
✔️ Supports 4 solar strings
✔️ Designed for 1000V DC solar systems
✔️ 4 SPD for enhanced surge protection
✔️ Robust IP65 enclosure for outdoor use
✔️ Long service life with minimal maintenance
✔️ Suitable for commercial & industrial solar plants
🔌 Applications
Rooftop Solar Power Plants
Commercial Solar Installations
Industrial Solar PV Projects
Grid-Tied Solar Systems
