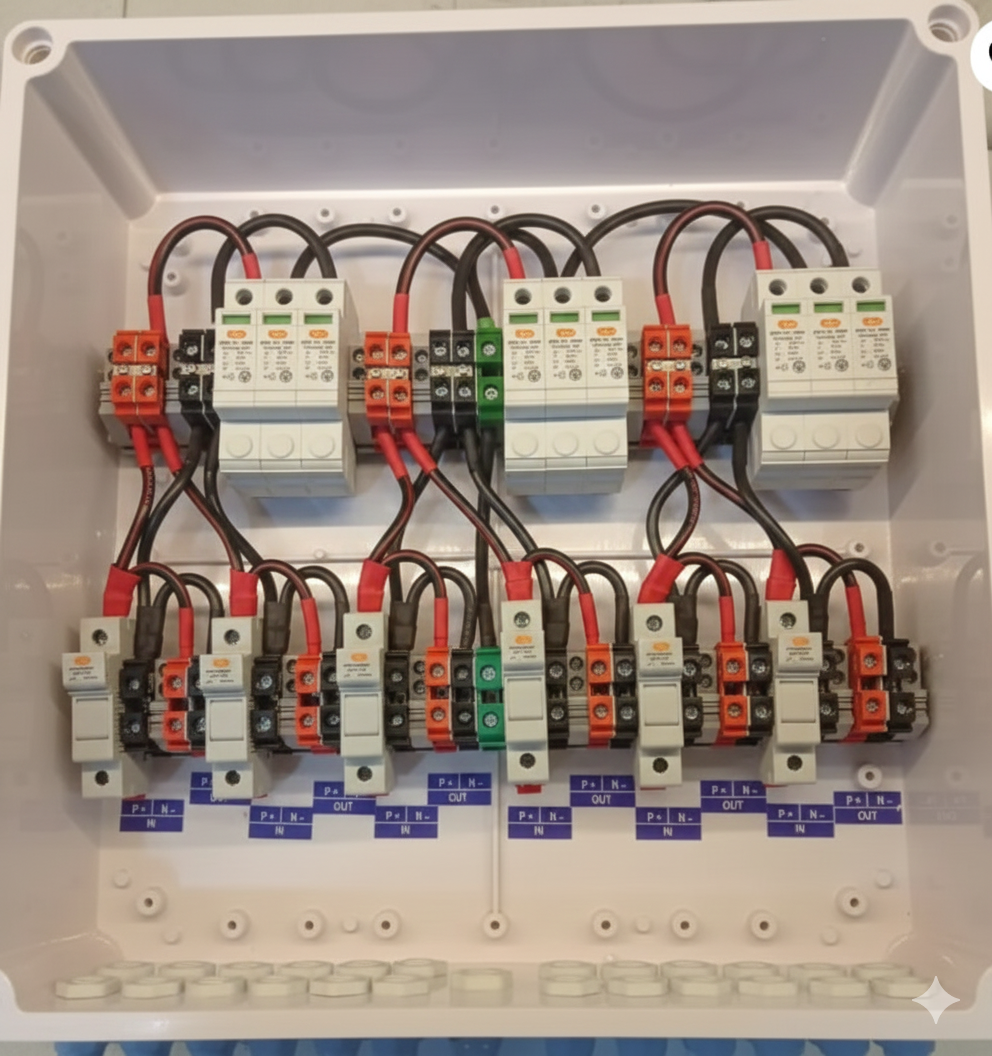

DCDB 6 IN-6 OUT 1000V 3-SPD (6 Series x ≤20 Panels)
AGRIM FUSE / AGRIM SPD
₹8190.00
🔹 Product Description
DCDB 6 IN–6 OUT 1000V 3-SPD ek high-quality DC Distribution Box hai jo solar PV systems ke liye specially design kiya gaya hai. Ye unit 6 solar strings (series) ko safely combine karke 6 independent DC outputs provide karta hai, jisse inverter tak stable aur protected DC supply milti hai.
Is DCDB me 3-SPD (Surge Protection Device) integrated hota hai jo lightning surge, voltage spikes aur transient over-voltage se system ko protect karta hai. Ye model MCB ke bina (No MCB) aata hai, isliye ye un projects ke liye ideal hai jahan external DC protection already installed hoti hai ya custom protection scheme use ki ja rahi ho.
Commercial aur industrial solar installations ke liye ye DCDB reliable, durable aur low-maintenance solution provide karta hai.
🔹 Key Features
Supports 6 Series × ≤20 Solar Panels
1000V DC rated system
In-built 3-SPD surge protection
No MCB design – external protection compatible
Heavy-duty enclosure for long life
Safe & efficient DC power distribution
Ideal for rooftop & ground-mounted solar plants
🔹 Technical Specifications
Parameter | Specification |
|---|---|
Product Type | DC Distribution Box (DCDB) |
Configuration | 6 IN – 6 OUT |
System Voltage | Up to 1000V DC |
No. of Strings | 6 Strings |
Panel Capacity | 6 Series × ≤20 Panels |
Surge Protection | 3-SPD (Type-2 DC SPD) |
MCB | Not Included (No MCB) |
Input / Output | DC Terminals |
Application | Solar PV Power Plants |
Mounting | Wall / Structure Mount |
Enclosure Material | Powder-Coated Metal / FRP (optional) |
Protection Degree | IP65 (Outdoor Suitable) |
Operating Temperature | -20°C to +60°C |
Standards | IEC / IS Compliant |
🔹 Applications
Commercial Solar Rooftop Systems
Industrial Solar Power Plants
Large Residential Solar Installations
On-Grid & Hybrid Solar Systems
