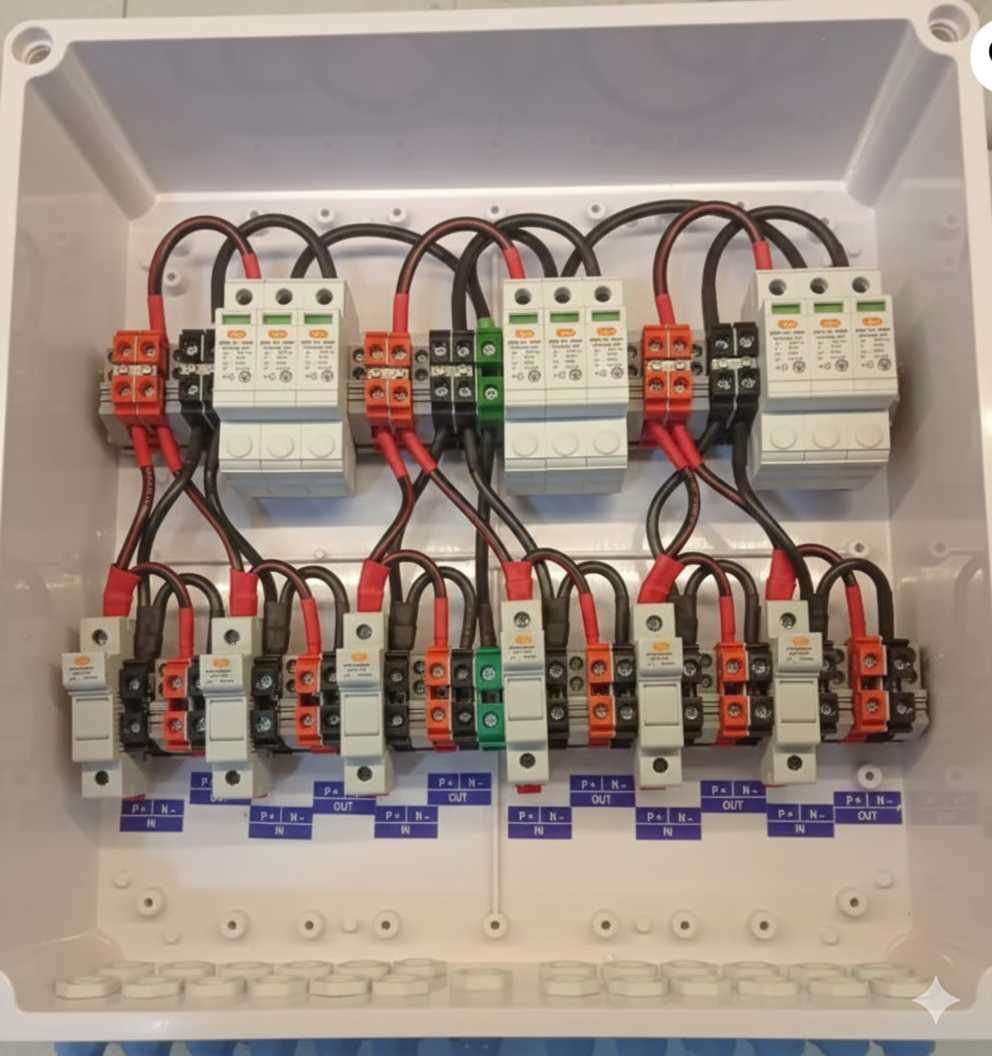

DCDB 6 IN-6 OUT 1000V 6-SPD (6 Series x ≤20 Panels)
HAVELLS FUSE / HAVELLS SPD
₹13650.00
🔆 Product Description
DCDB 6 IN – 6 OUT 1000V (6-SPD) Solar DC Distribution Box specially designed for grid-connected & off-grid solar PV systems.
Isme 6 string inputs aur 6 string outputs hote hain, jo 6 series strings (≤20 panels per string) ko safely combine karke inverter tak power transfer karta hai.
Ye DCDB high-quality Surge Protection Devices (SPD) ke sath aata hai jo lightning surge, voltage spikes aur transient over-voltage se solar panels aur inverter ko protect karta hai.
MCB / Fuse provided nahi hota, isliye ye system un installations ke liye ideal hai jahan external protection already available ho.
Robust weather-proof enclosure, high voltage handling aur reliable surge protection ke sath ye DCDB commercial & industrial solar installations ke liye perfect solution hai.
⚙️ Technical Specifications
Parameter | Specification |
|---|---|
Product Type | Solar DC Distribution Box (DCDB) |
Configuration | 6 IN – 6 OUT |
System Voltage | Up to 1000V DC |
String Configuration | 6 Series × ≤20 Panels per String |
Surge Protection | 6 SPD (Type-2, DC) |
MCB / Fuse | Not Provided (NO MCB) |
Protection Function | Surge & transient voltage protection |
Application | Grid-Tie / Off-Grid Solar PV Systems |
Enclosure Type | Weather-proof, UV resistant |
Mounting | Wall / Pole mounted |
Compliance | Suitable for IEC solar standards |
Usage Area | Residential, Commercial & Industrial |
✅ Key Features
✔️ Supports 6 solar strings
✔️ 1000V DC system compatibility
✔️ High-performance DC SPD protection
✔️ Strong & weather-resistant enclosure
✔️ Ideal for large rooftop & ground-mounted solar plants
✔️ Low maintenance & long service life
