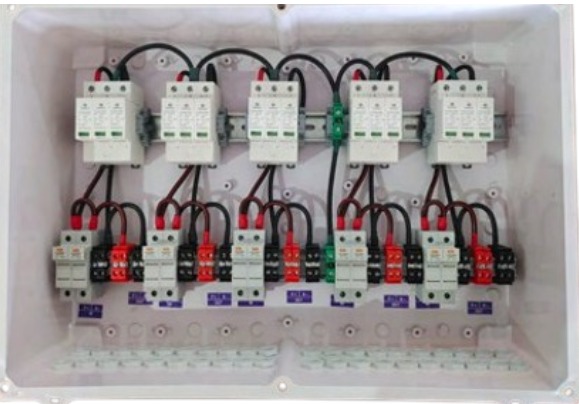

DCDB 8 IN-8 OUT 1000V 4-SPD (8 Series x ≤20 Panels)
AGRIM FUSE / AGRIM SPD
₹10270.00
🔌 DCDB 8 IN – 8 OUT 1000V | 4-SPD
(8 Series × ≤20 Panels | Without MCB)
📝 Product Description
DCDB 8 IN – 8 OUT 1000V 4-SPD ek high-performance DC Combiner Distribution Box hai jo large solar PV systems ke liye specially design kiya gaya hai. Ye unit 8 solar strings ko efficiently combine karke inverter tak safe aur reliable DC power supply ensure karta hai.
Is DCDB me 4 DC Surge Protection Devices (SPD) integrated hote hain jo lightning surge, voltage spikes aur transient over-voltage se system ko protect karte hain. MCB ke bina design hone ki wajah se ye un installations ke liye ideal hai jahan external protection devices already installed hote hain.
Commercial, industrial aur utility-scale solar power plants ke liye ye DCDB long-term safety, high efficiency aur low maintenance provide karta hai.
⚙️ Technical Specifications
Parameter | Details |
|---|---|
Product Type | DC Combiner Distribution Box |
Input | 8 Strings |
Output | 8 Strings |
System Voltage | Up to 1000V DC |
Panel Configuration | 8 Series × ≤20 Panels |
Surge Protection | 4 × DC SPD |
SPD Type | Type-II (DC) |
MCB | ❌ Not Included |
Enclosure Material | Powder-Coated / GI / FRP (as per requirement) |
Protection Degree | IP65 (Outdoor Use) |
Operating Temperature | -10°C to +60°C |
Mounting Type | Wall Mounted |
Cable Entry | Bottom / Side (as per design) |
Application | Commercial & Industrial Solar Plants |
⭐ Key Features
✔️ Supports up to 1000V DC solar systems
✔️ 8 IN – 8 OUT configuration for efficient string management
✔️ 4-SPD protection against lightning & surge
✔️ Rugged weather-proof enclosure (IP65)
✔️ Compatible with large-scale solar installations
✔️ Low maintenance & long service life
🏭 Applications
Commercial Solar Power Plants
Industrial Rooftop Solar Systems
Ground-Mounted Solar PV Projects
Utility-Scale Solar Installations
